Vertex Tri Tier Floating Pond Fountain
Vertex Tri Tier Floating Pond Fountain
Regular price
$10,000.00 USD
Regular price
Sale price
$10,000.00 USD
Unit price
per
Couldn't load pickup availability
The Incredible TriTier

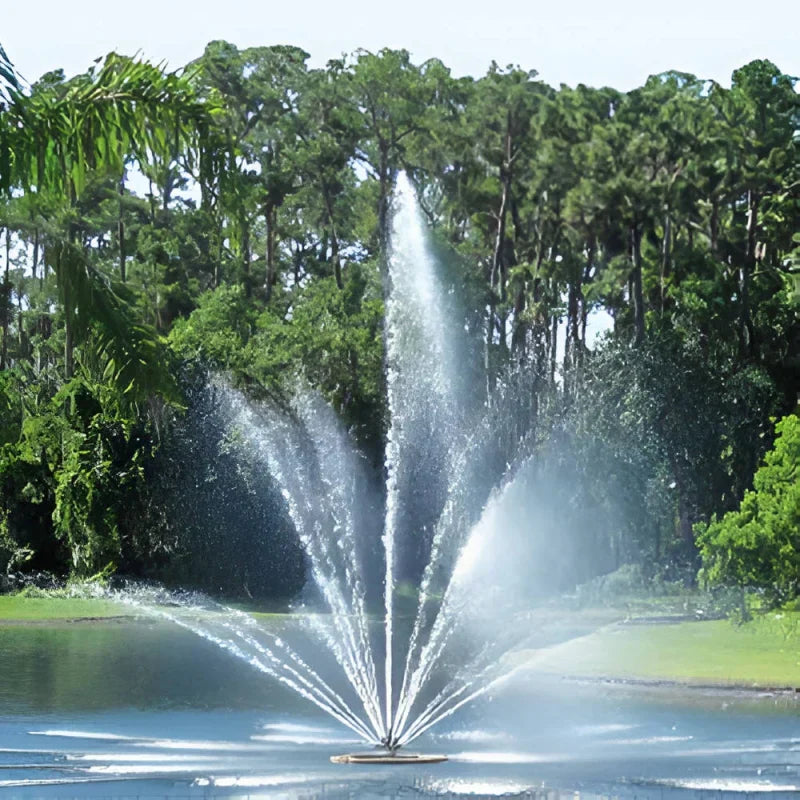

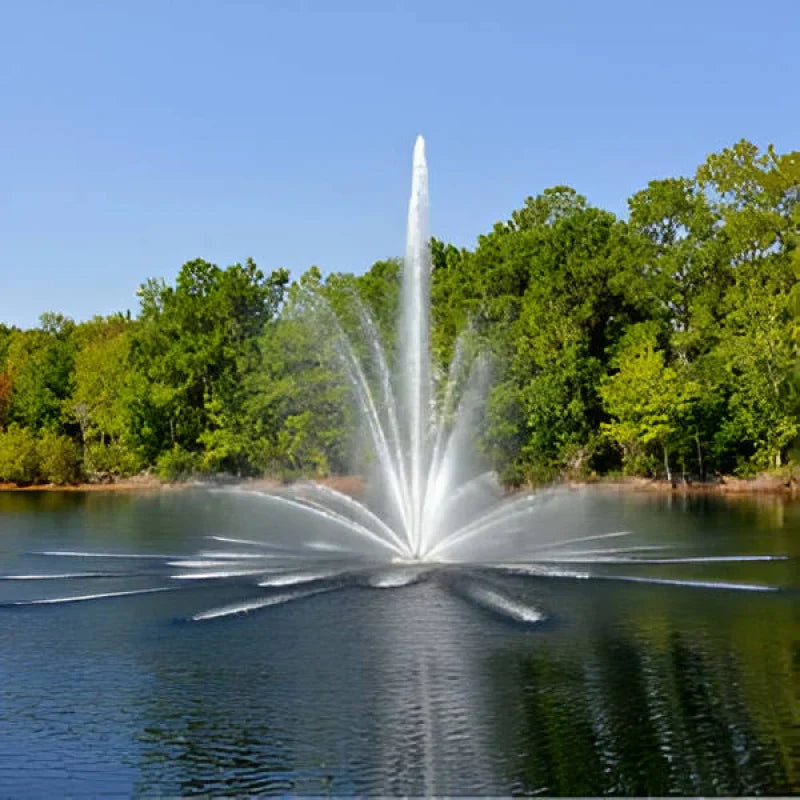

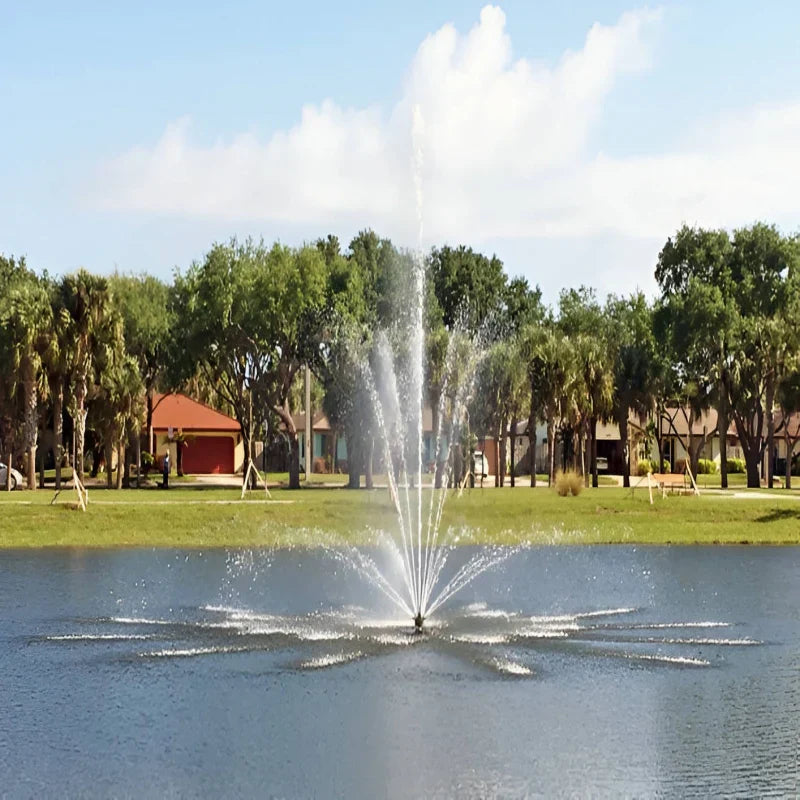

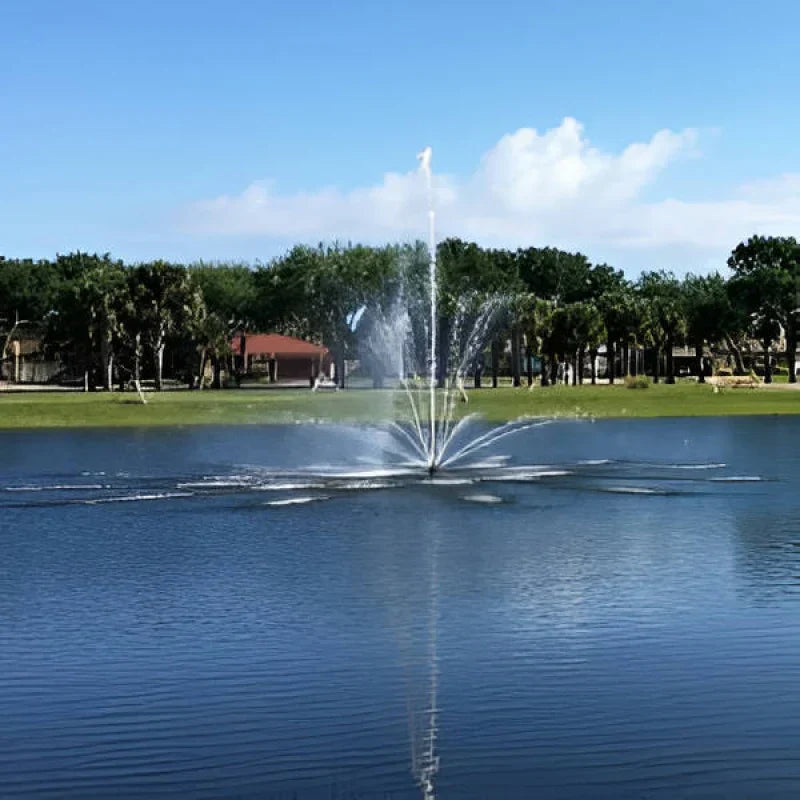

The TriTier floating pond fountain provides one of the most delicate and aesthetic displays offered. The dramatic three-tier pattern, with its floral arches, created by a brass precision machined nozzle is available in heights from 18 to 40 feet. The TriTier pond fountain is powered by a heavy-duty submersible turbine pump and a UL-listed control panel. All components are fully waterproof and made of the finest corrosion-resistant materials providing customers with years of dependability and high performance.

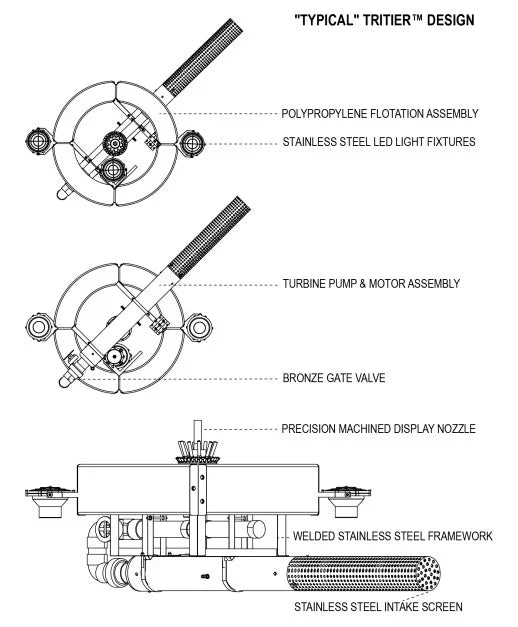

Features & Benefits
Nozzles
- Precision machined brass/bronze or stainless steel nozzles
Pumps / Motors
- High-performance turbine pump/motor assembly
- Stainless steel construction
- Water cooled: no oils, seals, or o-rings to replace
- 4-year warranty
Flotation
- Rotocast polypropylene with UV inhibitors for long life
- Individual leveling compartments for exact adjustments
- 4-year warranty
Control Panel
- UL listed per National Electrical Code
- Weatherproof steel enclosures
Submersible Light Fixtures
- Energy efficient LED, 140 lumens/watt
- Stainless steel housing
- 2-year warranty
Cables
- STW-A rated
- 4-year warranty
Technical Specifications
| 2 HP Unit |
3 HP Unit | 5 HP Unit | 7.5 HP Unit | 10 HP Unit | 15 HP Unit | |
|---|---|---|---|---|---|---|
| Minimum Operating Depth | 3' | 4' | 4' |
5' | 6' | 7' |
| Spray Height 1 (A) | 18' | 23' |
26' | 30′ | 35′ | 40' |
| Spray Height 2 (B) | 8' | 10' | 12' | 15' | 17' | 20' |
| Spray Height 3 (C) | 4' | 5' | 6' | 7' | 8' | 10' |
| Diameter (D) | 20′ | 25′ | 40′ | 45' | 50′ | 55′ |
| LED Lights | 2 | 2 | 3 | 4 | 4 | 5 |
| Total Wattage | 86W | 86W | 129W | 172W | 172W | 215W |
| AMP Draw | 1 | 1 | 1.5 | 2 | 2 | 2.5 |
| Available Phase | 1 & 3 | 1 & 3 | 1 & 3 | 1 & 3 | 1 & 3 | 1 & 3 |
| 1 Phase (Volts) | 230 | 230 | 230 | 230 | 230 | 230 |
| 3 Phase (Volts) | 208 or 230 | 208 or 230 | 208 or 230 | 208 or 230 | 208 or 230 | 208 or 230 |
| Display Heads Warranty | 4-Year |
4-Year | 4-Year | 4-Year | 4-Year | 4-Year |
| Pumps & Motors Warranty | 4-Year | 4-Year | 4-Year | 4-Year | 4-Year | 4-Year |
| LED Lighting Warranty | 2-year | 2-year | 2-year | 2-year | 2-year | 2-year |
| Control Panel Warranty | 1-Year | 1-Year | 1-Year | 1-Year | 1-Year | 1-Year |
