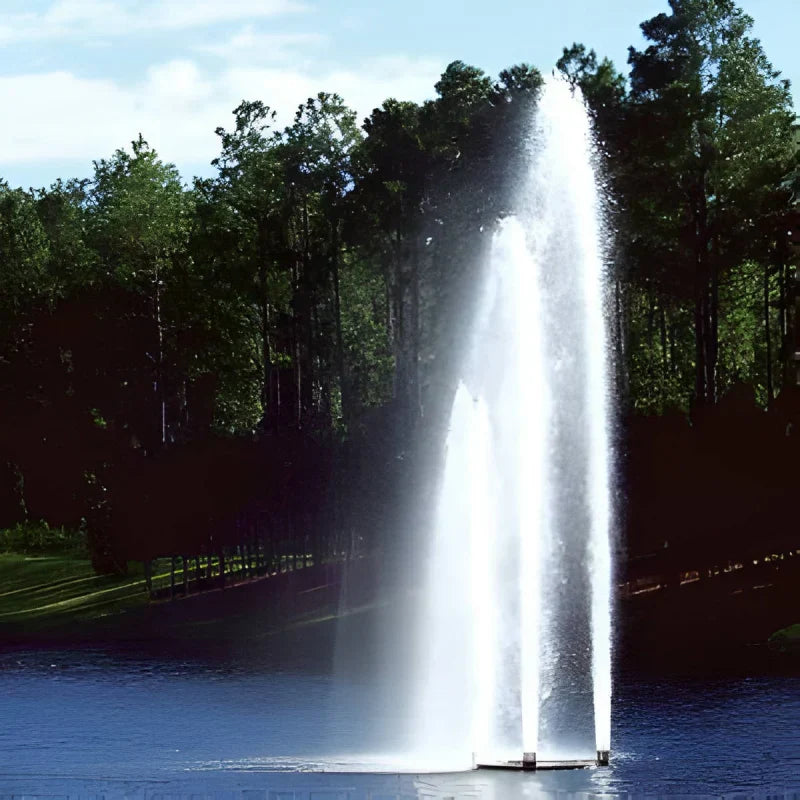

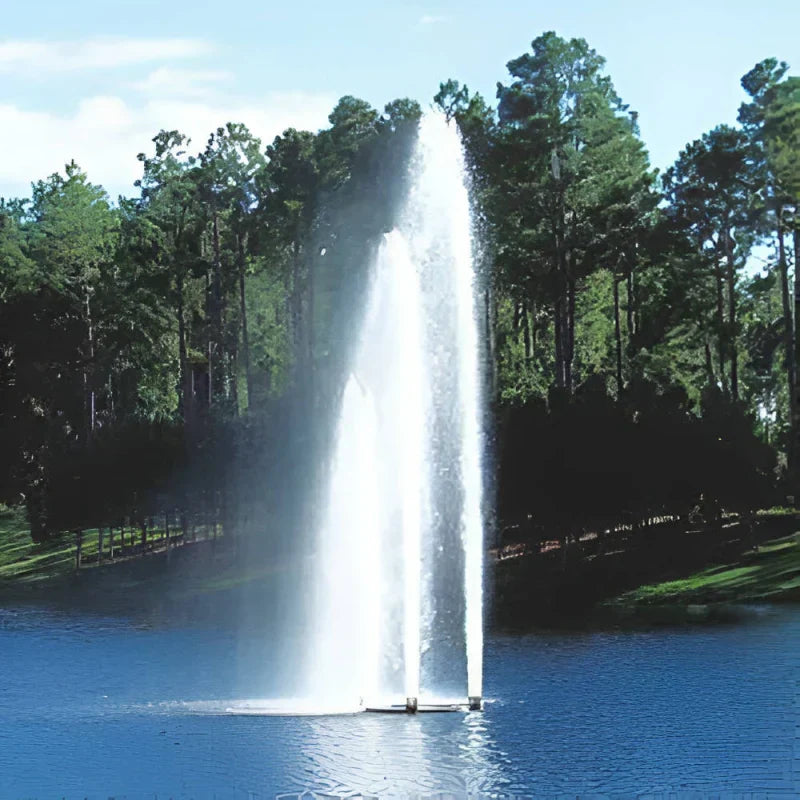

Vertex TriPod Floating Pond Fountain

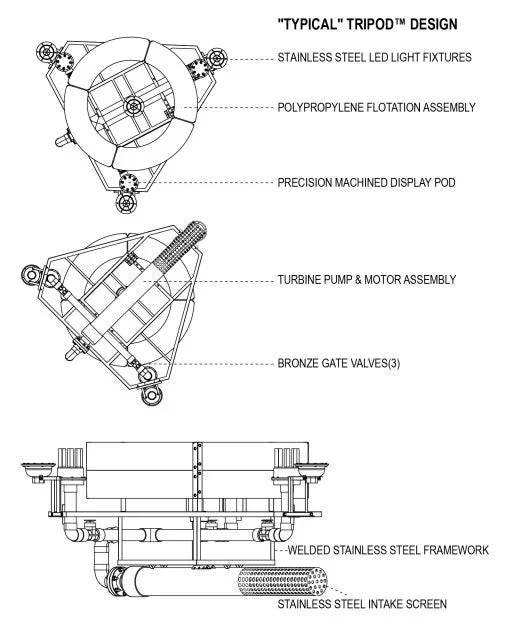

The TriPod floating pond fountain creates a striking water feature with three distinct, rising streams. Each stream measures 8 inches in diameter, offering a substantial visual impact. You can adjust the flow of each stream on-site, allowing for a personalized water display that suits your pond or lake. This floating fountain system includes a UL listed control panel and a robust submersible turbine pump. Both components are built to last, using premium, corrosion-resistant materials for reliable operation and long-term performance.
Key Features & Benefits
Nozzles
- Precision-machined brass/bronze or stainless steel nozzles for consistent water patterns.
Pumps / Motors
- Efficient turbine pump/motor assembly.
- Constructed from durable stainless steel.
- Water-cooled design eliminates the need for oils, seals, or o-rings, simplifying maintenance.
- Backed by a 4-year warranty.
Flotation
- Rotocast polypropylene float with UV protection for durability in sunlight.
- Separate leveling sections allow for precise positioning.
- Comes with a 4-year warranty.
Control Panel
- UL listed, meeting National Electrical Code standards.
- Weather-resistant steel enclosures protect components.
Submersible Light Fixtures
- Energy-saving LED lights, providing 140 lumens per watt.
- Housed in stainless steel for longevity.
- Includes a 2-year warranty.
Cables
- STW-A rated for outdoor use.
- Covered by a 4-year warranty.
Technical Specifications
| 10 HP Unit |
15 HP Unit | 20 HP Unit | 30 HP Unit | |
|---|---|---|---|---|
| Minimum Operating Depth | 6' | 7' | 7' |
8' |
| Spray Height 1 (A) | 20' | 25' |
30' | 40′ |
| Spray Height 2 (B) | 15' | 20' | 25' | 30' |
| Spray Height 3 (C) | 10' | 15' | 20' | 25' |
| Diameter (D) | 10′ | 12′ | 12′ | 12' |
| LED Lights | 6 | 7 | 9 | 9 |
| Total Wattage | 258W | 301W | 387W | 387W |
| AMP Draw | 3 | 3.5 | 4.5 | 4.5 |
| Available Phase | 1 & 3 | 1 & 3 | 3 | 3 |
| 1 Phase (Volts) | 230 | 230 | - |
- |
| 3 Phase (Volts) | 208 or 230 | 208 or 230 | 230 | 230 |
| Display Heads Warranty | 4-Year |
4-Year | 4-Year | 4-Year |
| Pumps & Motors Warranty | 4-Year | 4-Year | 4-Year | 4-Year |
| LED Lighting Warranty | 2-year | 2-year | 2-year | 2-year |
| Control Panel Warranty | 1-Year | 1-Year | 1-Year | 1-Year |
