Vertex
Vertex Ring Jet Floating Pond Fountain
Vertex Ring Jet Floating Pond Fountain
Regular price
$18,650.00 USD
Regular price
Sale price
$18,650.00 USD
Unit price
per
Couldn't load pickup availability
The Remarkable RingJet

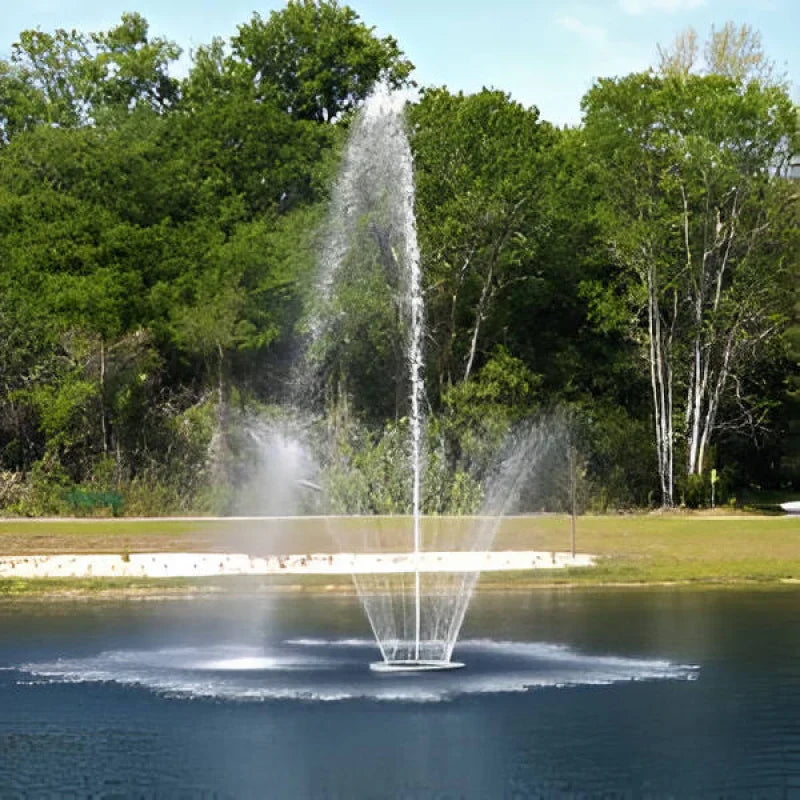

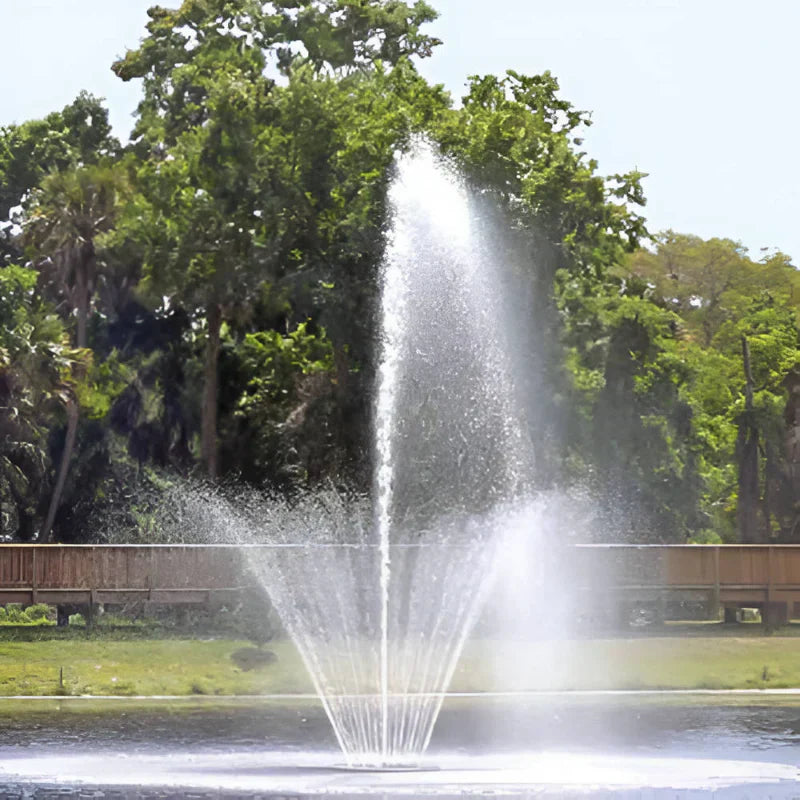

Introducing the exquisite RingJet pond fountain, where maximum heights meet delicate elegance. The custom spray ring beautifully accentuates the center display, creating a graceful outward arch of water resembling a tulip-like pattern. Experience the superior performance and reliability of Vertex's RingJet floating pond fountain. Powered by a UL-listed control panel and a submersible, heavy-duty turbine pump, these fountains are built to last. With fully waterproof components made from the finest corrosion-resistant materials, they guarantee years of dependability and high performance.

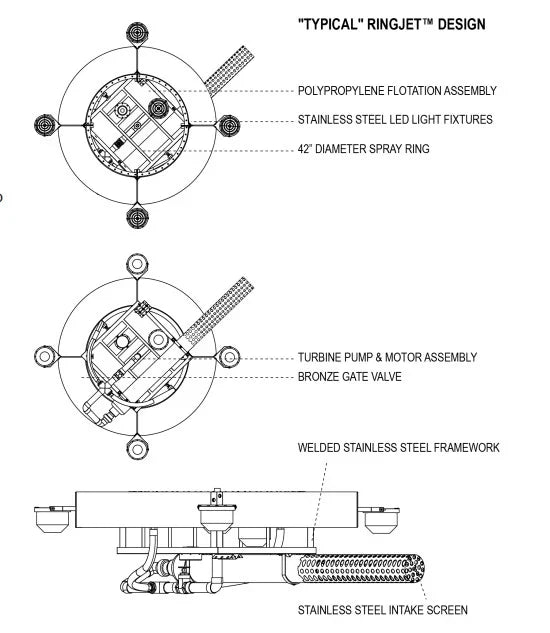

Features & Benefits
Nozzles
- Precision machined brass/bronze or stainless steel nozzles
Pumps / Motors
- High-performance turbine pump/motor assembly
- Stainless steel construction
- Water cooled: no oils, seals, or o-rings to replace
- 4-year warranty
Flotation
- Rotocast polypropylene with UV inhibitors for long life
- Individual leveling compartments for exact adjustments
- 4-year warranty
Control Panel
- UL listed per National Electrical Code
- Weatherproof steel enclosures
Submersible Light Fixtures
- Energy efficient LED, 140 lumens/watt
- Stainless steel housing
- 2-year warranty
Cables
- STW-A rated
- 4-year warranty
Technical Specifications
| 5 HP Unit | 7.5 HP Unit | 10 HP Unit | 15 HP Unit | |
|---|---|---|---|---|
| Minimum Operating Depth | 4' |
5' | 6' | 7' |
| Center Height (A) | 25' | 30′ | 40′ | 45' |
| Side Height (B) | 12' | 15' | 18' | 20' |
| Diameter (C) | 25′ | 30' | 35′ | 40′ |
| Nozzle Diameter | 3/16″ | 3/16″ | 1/4″ | 1/4″ |
| LED Lights | 4 | 4 | 5 | 5 |
| Total Wattage | 172W | 172W | 215W | 215W |
| AMP Draw | 2 | 2 | 2.5 | 2.5 |
| Available Phase | 1 & 3 | 1 & 3 | 1 & 3 | 1 & 3 |
| 1 Phase (Volts) | 230 | 230 | 230 | 230 |
| 3 Phase (Volts) | 208 or 230 | 208 or 230 | 208 or 230 | 208 or 230 |
| Display Heads Warranty | 4-Year | 4-Year | 4-Year | 4-Year |
| Pumps & Motors Warranty | 4-Year | 4-Year | 4-Year | 4-Year |
| LED Lighting Warranty | 2-year | 2-year | 2-year | 2-year |
| Control Panel Warranty | 1-Year | 1-Year | 1-Year | 1-Year |
