Vertex Funnel Jet Floating Pond Fountain
Vertex Funnel Jet Floating Pond Fountain
Couldn't load pickup availability
The Fantastic FunnelJet

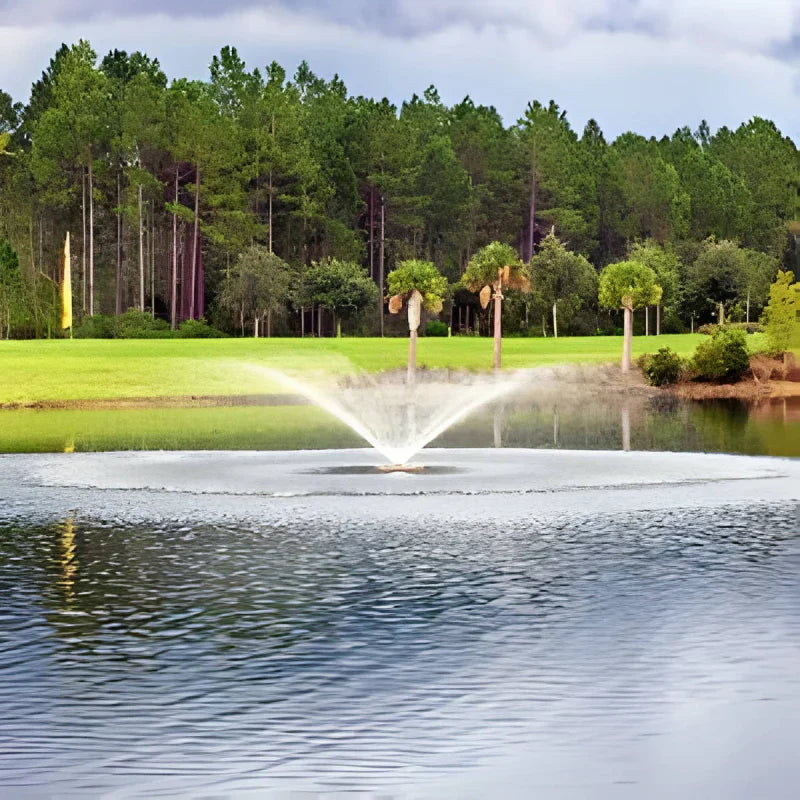

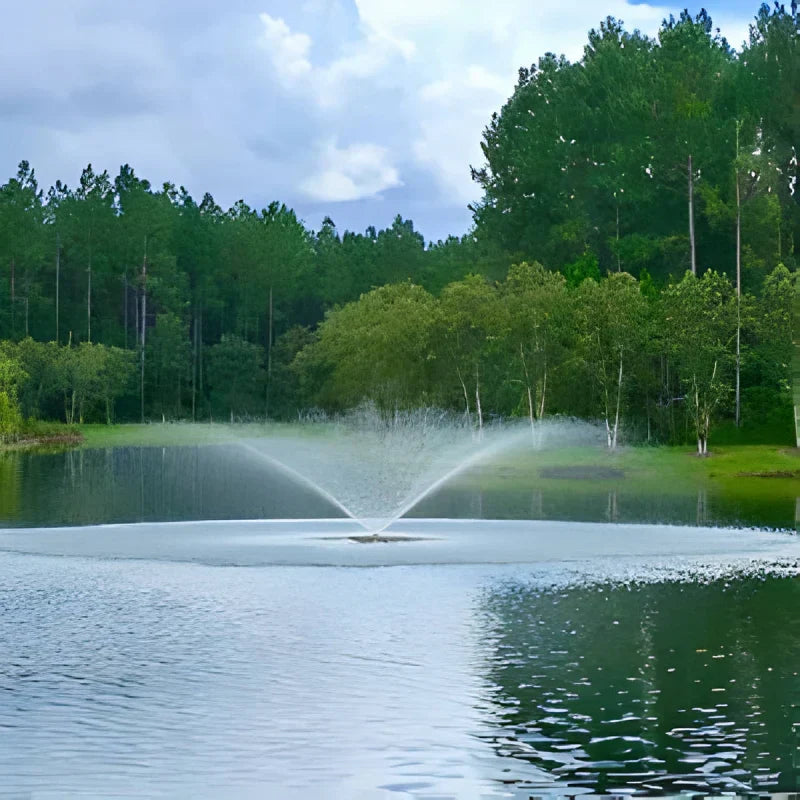

Experience the captivating allure of the FunnelJet floating pond fountain series—a remarkable blend of power and sophistication. Delight in the mesmerizing sight of a grand, expansive ring of glistening water, gracefully adorning your lake or pond. Designed with a low profile, these fountains preserve unobstructed vistas while delivering an enchanting water feature. Crafted with utmost precision, FunnelJet floating lake fountains boast fully waterproof components and utilize top-grade materials renowned for their exceptional resistance to corrosion. Embrace years of unwavering dependability and unparalleled performance. Every FunnelJet fountain is equipped with a UL-listed control panel and a robust submersible turbine pump, ensuring optimal functionality.

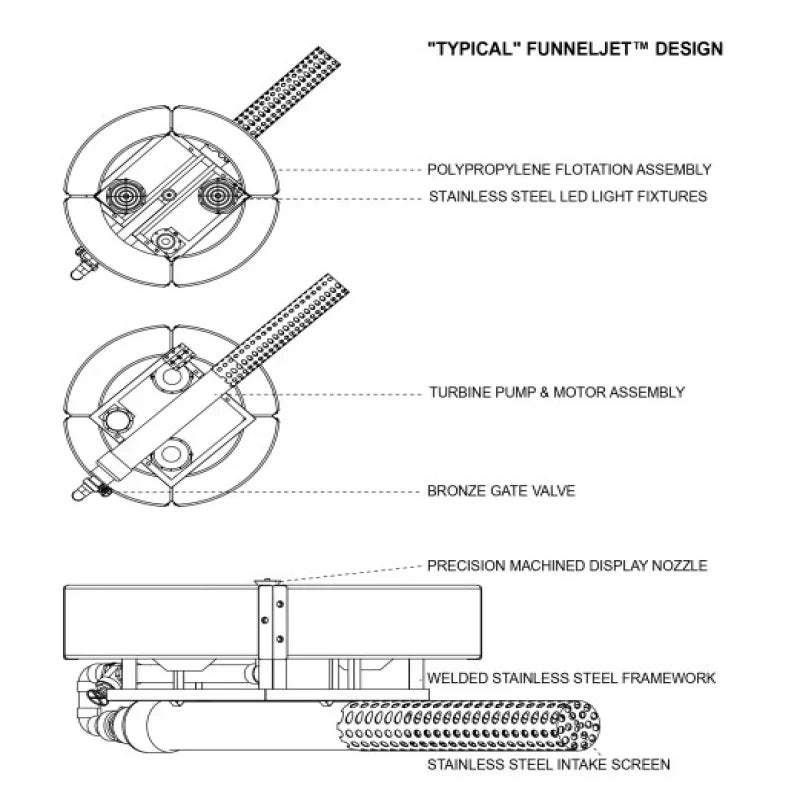

Features & Benefits
Nozzles
- Precision machined brass/bronze or stainless steel nozzles
Pumps / Motors
- High-performance turbine pump/motor assembly
- Stainless steel construction
- Water cooled: no oils, seals, or o-rings to replace
- 4-year warranty
Flotation
- Rotocast polypropylene with UV inhibitors for long life
- Individual leveling compartments for exact adjustments
- 4-year warranty
Control Panel
- UL listed per National Electrical Code
- Weatherproof steel enclosures
Submersible Light Fixtures
- Energy efficient LED, 140 lumens/watt
- Stainless steel housing
- 2-year warranty
Cables
- STW-A rated
- 4-year warranty
Technical Specifications
| 2 HP Unit |
3 HP Unit | 5 HP Unit | 7.5 HP Unit | 10 HP Unit | |
|---|---|---|---|---|---|
| Minimum Operating Depth | 3' | 3' | 4' |
5' | 6' |
| Spray Height (A) | 6' | 7' |
8' | 8′ | 9′ |
| Diameter (B) | 25′ | 30′ | 35′ | 45' | 50′ |
| LED Lights | 3 | 3 | 3 | 3 | 3 |
| Total Wattage | 86W | 86W | 86W | 86W | 86W |
| AMP Draw | 1 | 1 | 1 | 1 | 1 |
| Available Phase | 1 & 3 | 1 & 3 | 1 & 3 | 1 & 3 | 1 & 3 |
| 1 Phase (Volts) | 230 | 230 | 230 | 230 | 230 |
| 3 Phase (Volts) | 208 or 230 | 208 or 230 | 208 or 230 | 208 or 230 | 208 or 230 |
| Display Heads Warranty | 4-Year |
4-Year | 4-Year | 4-Year | 4-Year |
| Pumps & Motors Warranty | 4-Year | 4-Year | 4-Year | 4-Year | 4-Year |
| LED Lighting Warranty | 2-year | 2-year | 2-year | 2-year | 2-year |
| Control Panel Warranty | 1-Year | 1-Year | 1-Year | 1-Year | 1-Year |
