Vertex

Vertex Fan Jet Floating Pond Fountain

Vertex Fan Jet Floating Pond Fountain

Regular price $28,390.00 USD
Regular price Sale price $28,390.00 USD
Sale Sold out
Shipping calculated at checkout.

FanJet Floating Fountain Series

Add a striking water feature to your pond or lake with the FanJet floating fountain. This series creates a captivating display with a prominent central spray and a graceful lower pattern, producing a beautiful visual effect on any body of water. The FanJet is powered by a UL-certified control panel and a robust submersible turbine pump. All components are fully waterproof and built with high-quality, corrosion-resistant materials, ensuring years of dependable performance for your property or community.

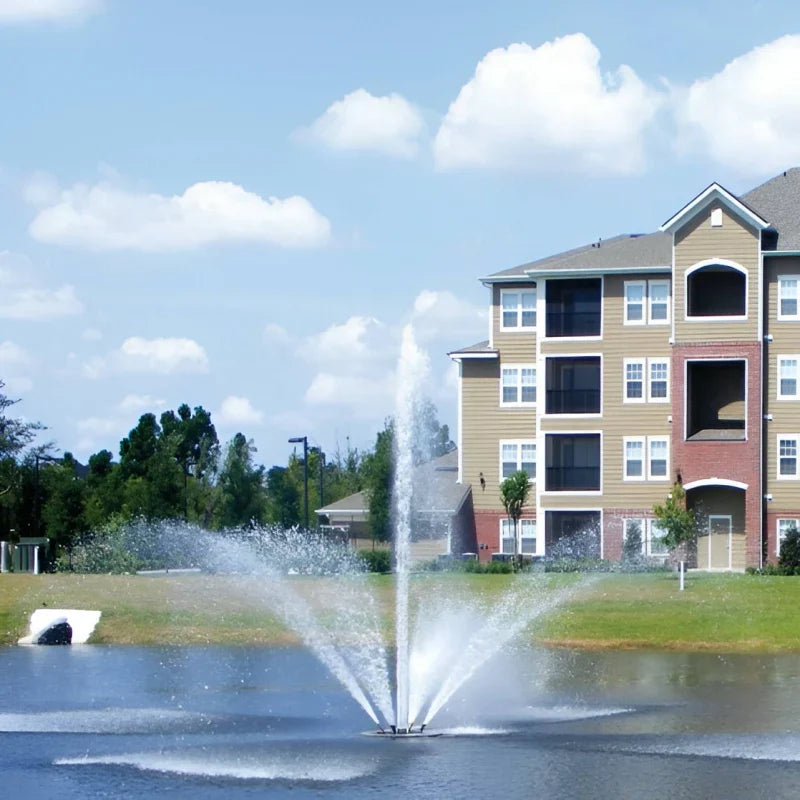

Vertex FanJet Floating Fountain Series On Water Display With Apartment On Background

Features & Benefits

Nozzles

  • Precision-made from brass/bronze or stainless steel

Pumps / Motors

  • Efficient turbine pump and motor assembly
  • Constructed from stainless steel
  • Water-cooled design: requires no oil, seals, or o-rings for maintenance
  • Includes a 4-year warranty

Flotation

  • Made from rotocast polypropylene with UV protection for long-term use
  • Features separate compartments for simple leveling adjustments
  • Comes with a 4-year warranty

Control Panel

  • UL listed, meeting National Electrical Code standards
  • Housed in weather-resistant steel enclosures

Submersible Light Fixtures

  • Energy-efficient LED lights, providing 140 lumens per watt
  • Encased in stainless steel
  • Backed by a 2-year warranty

Cables

  • STW-A rated
  • Covered by a 4-year warranty

Specifications

Vertex FanJet Floating Pond Fountain


10 HP Unit
15 HP Unit 20 HP Unit 30 HP Unit
Minimum Operating Depth 6' 7' 7'
8'
Center Height (A) 25' 30'
35' 45′
Side Height (B) 8' 10' 12' 15'
Diameter (C) 35′ 40′ 45′ 50'
LED Lights 7 7 9 9
Total Wattage 301W 301W 387W 387W
AMP Draw 3.5 3.5 4.5 4.5
Available Phase 1 & 3 1 & 3 3 3
1 Phase (Volts) 230 230 -
-
3 Phase (Volts) 208 or 230 208 or 230 230 230
Display Heads Warranty 4-Year
4-Year 4-Year 4-Year
Pumps & Motors Warranty 4-Year 4-Year 4-Year 4-Year
LED Lighting Warranty 2-year 2-year 2-year 2-year
Control Panel Warranty 1-Year 1-Year 1-Year 1-Year
