Recreational Pond Kit 9′ x 20′ Benefits:
- Complete kit makes pond building easy
- Includes a 9’ x 20’ deep area, 7.5’ x 11’ wetland filter, and 5’ x 6’ intake bay
- High-performance EXT Pond Pump ensures proper water flow
- Large wetland filter helps maintain clear and healthy water
Kit Contents:
- Pondless® Waterfall Vault
- Pondless® Waterfall Vault Extension
- Large Snorkel® Vault and Cap
- Large Snorkel® Vault Extension
- Large Centipede® Module
- Half Centipede® Module
- AquaBlox® Water Storage Module – Small
- AquaBlox® Water Storage Module – Large
- EXT 12000 Pond Pump
- Flexible PVC Pipe 3″ x 50′
- Flexible PVC Pipe 2″ x 25′
- EXT Pump 2″-3″ Plumbing Kit
- 45 mil EPDM Liner Roll – 25′ x 50′
- 45 mil EPDM Liner Boxed – 20′ x 25′
- Non-Woven Geotextile Underlayment – 15′ x 100′ (1,500 sq ft)
- Rock Pad Roll – 15’x150′
- Smart Pond Dosing System XT
- Maintain for Ponds XT – 1 Gal
- IonGen™ System G2
- Water Feature Installation Kit
Resources
Owner's Manual and Instructions
Rock Pad (25000, 25001)Size: 461.18 KB
Smart Pond Dosing System XT (40040)Size: 2.77 MB
EXT Pump Plumbing Kit 2in (48027)Size: 706.25 KB
EXT Pond Pump (45049, 45050, 45051, 45052)Size: 1.88 MB
IonGen Generation G2 (95027)Size: 3.32 MB
Pondless Vault Instructions (49000, 49001)Size: 3.35 MB
AquaBlox®, Snorkel and Centipede Instructions (29491, 29492, 29065, 29064, 29068, 29238, 29066)Size: 4.35 MB
Drawings and Diagrams

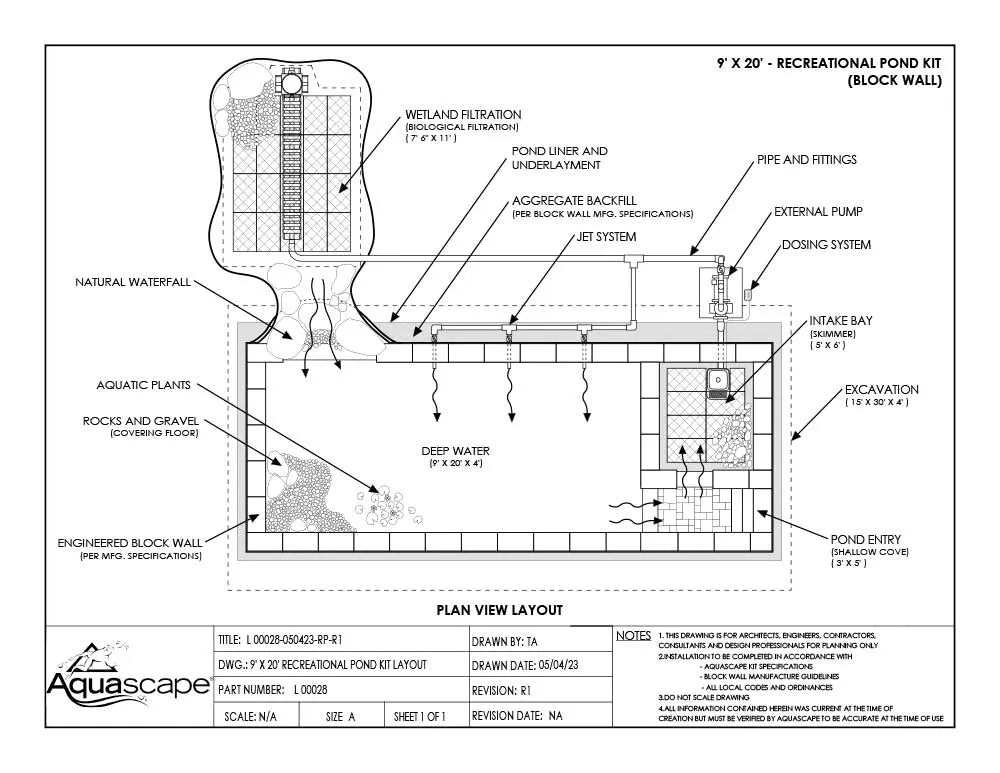

9′ X 20′ Recreational Pond Kit (Block Wall)Size: 180 KB
Double Block Wall DetailSize: 316 KB
Block Wall with Upper Jet DetailSize: 220 KB
Block Wall with Lower Jet DetailSize: 169 KB
Block Wall Jet Outflow Plumbing LayoutSize: 169 KB
Videos
Technical Specifications
| Specification | 9'x20' Kit (53073) | Quantity |
|---|---|---|
| Pondless Waterfall Vault | 49000 | 1 |
| Pondless Waterfall Vault Extension | 49001 | 2 |
| Large Snorkel Vault and Cap | 29064 | 1 |
| Large Snorkel Vault Extension | 29068 | 1 |
| Large Centipede Module | 29065 | 1 |
| 1/2 Centipede | 29066 | 1 |
| AquaBlox Water Storage Module - Small | 29491 | 20 |
| AquaBlox Water Storage Module - Large | 29492 | 8 |
| Pond Pump | EXT 12000 45049 |
1 |
| Flexible PVC Pipe | 3" x 50' 29025 2" x 25' 29023 |
1 each |
| EXT Pump 2"-3" Plumbing Kit | 48027 | 1 |
| PVC Manifold Kit for 2" or 3" | 29156 | 1 |
| 45 mil EPDM Liner | Roll - 25' x 50' 29200 Boxed - 20' x 25' 85004 |
1 each |
| Non-Woven Geotextile | 15' x 100' 29227 |
1 |
| Underlayment Rock Pad Roll | 25001 | 1 |
| Smart Pond Dosing System XT | 40040 | 1 |
| Maintain for Ponds XT - 1 Gal | 40049 | 1 |
| IonGen System G2 | 95027 US 95012 Canada |
1 |
| Water Feature Install Kit | 22008 | 1 |
