Kasco Universal Mount

Kasco Universal Dock Mount: Versatile Solution for Your Waterfront

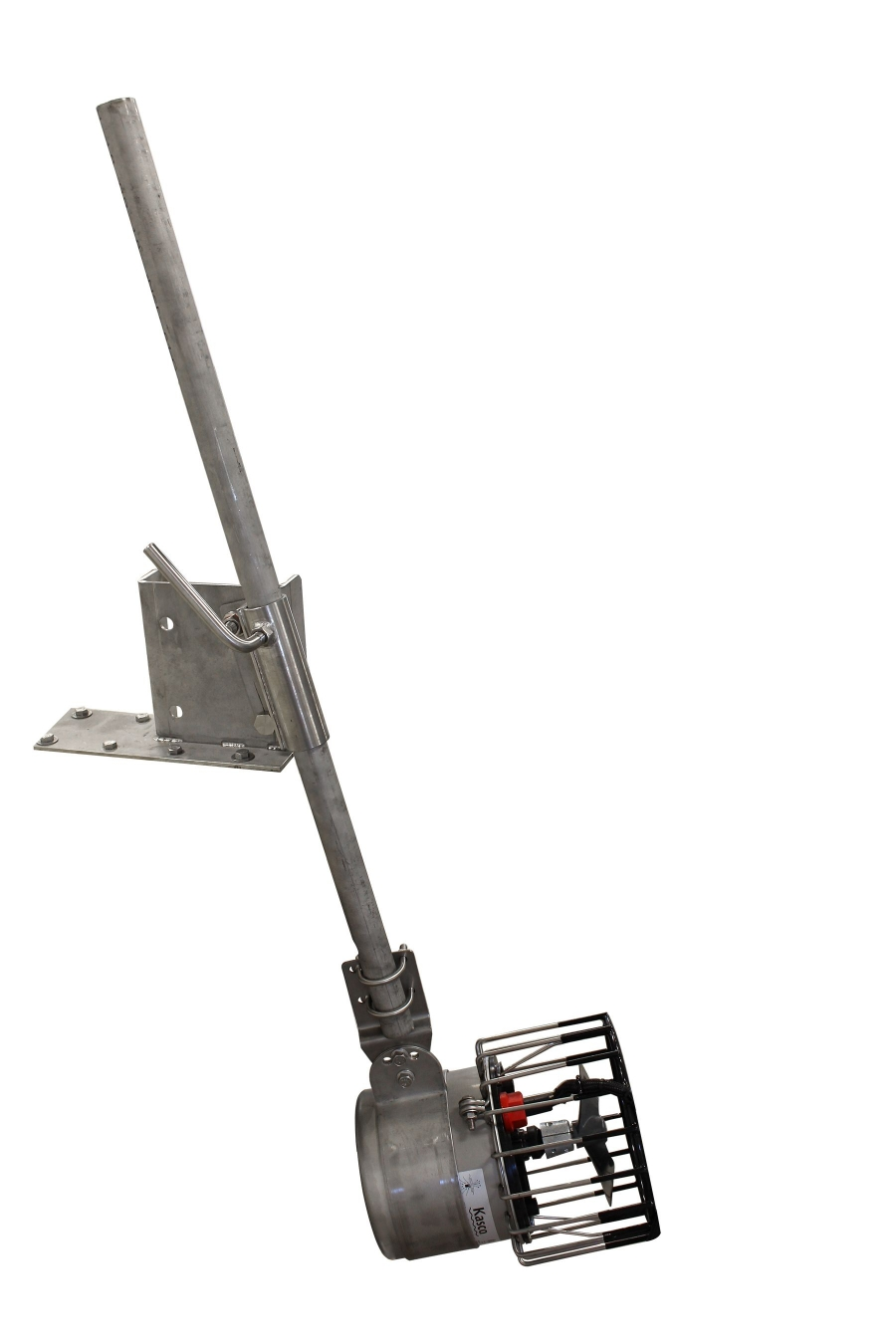

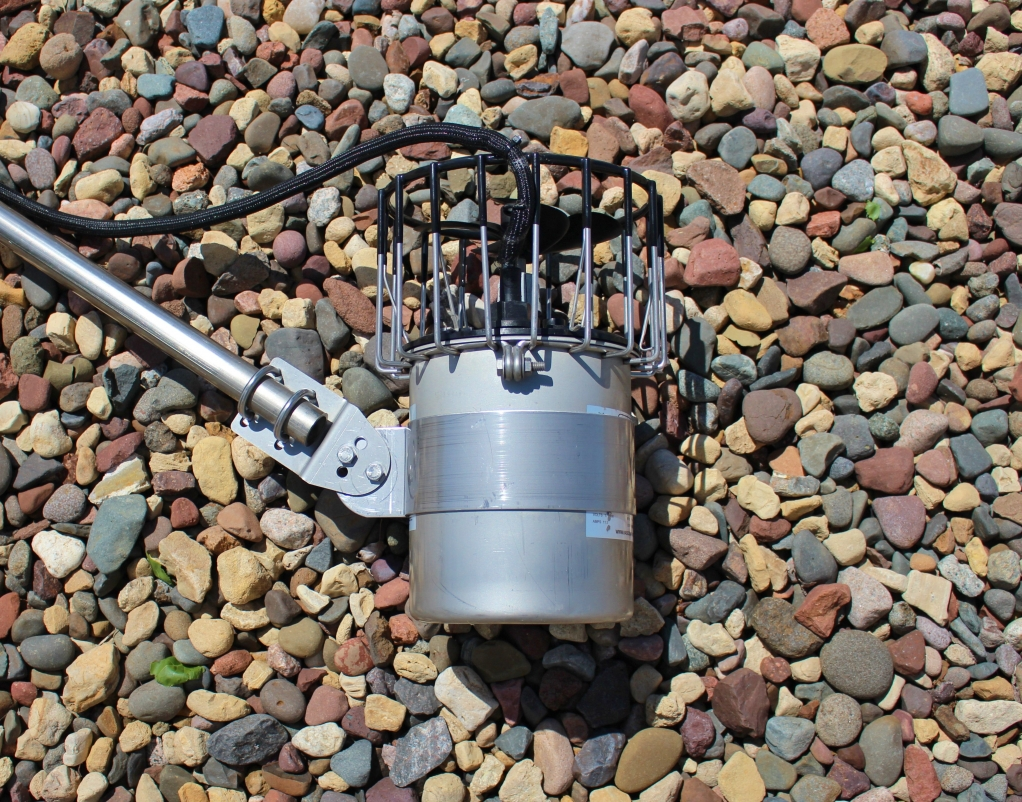

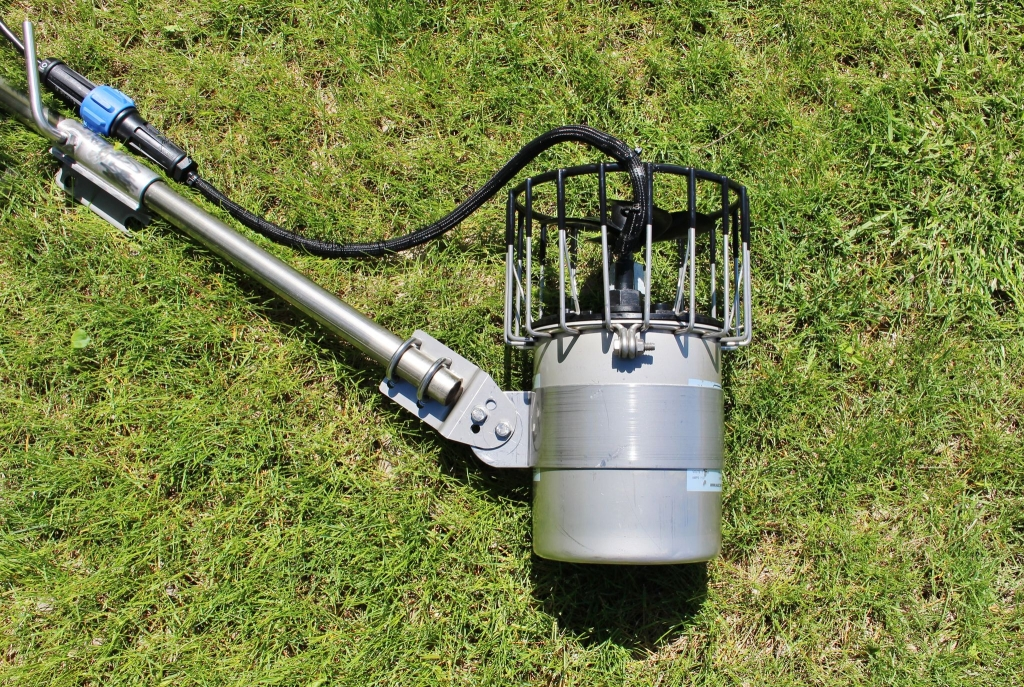

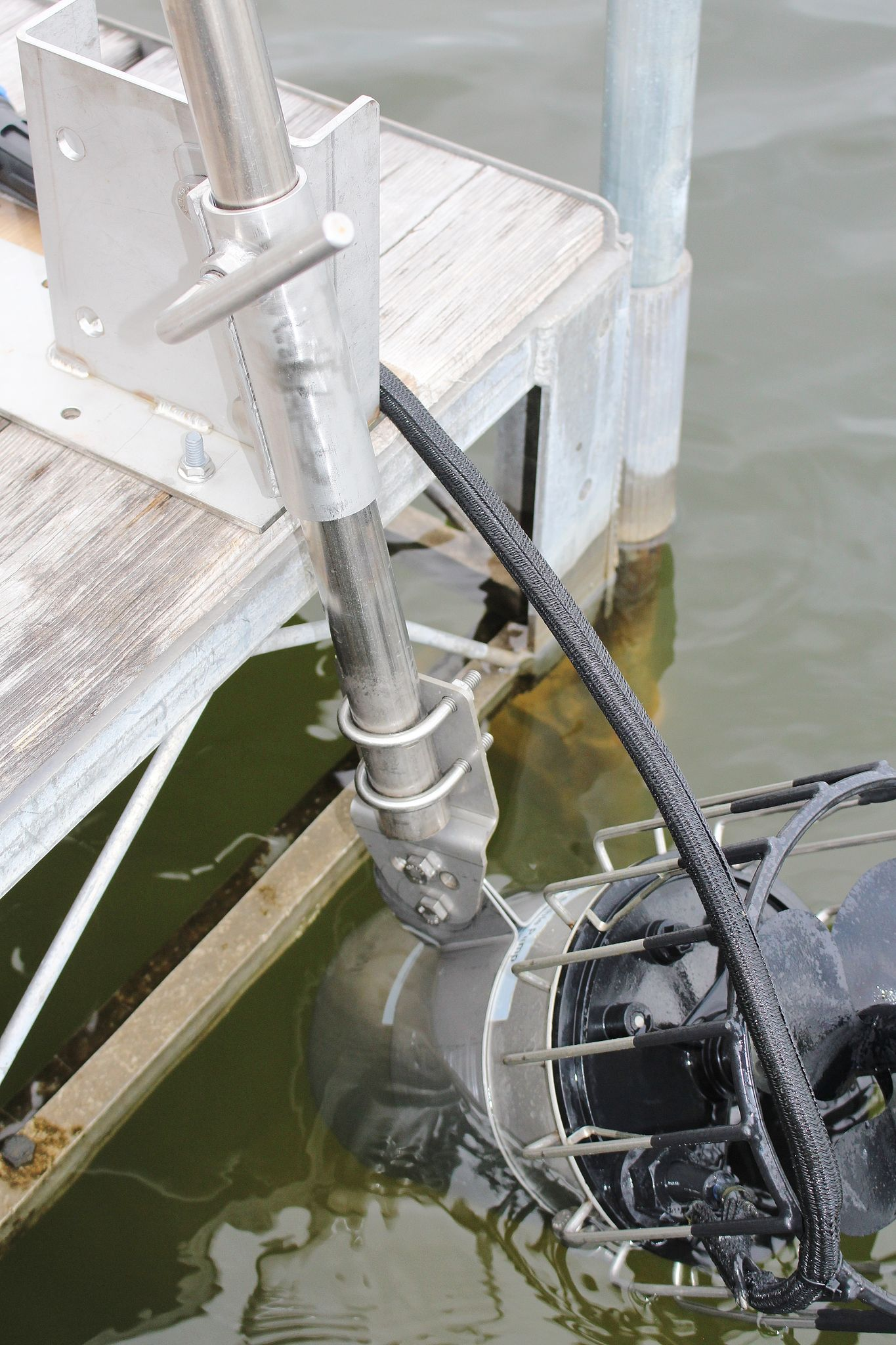

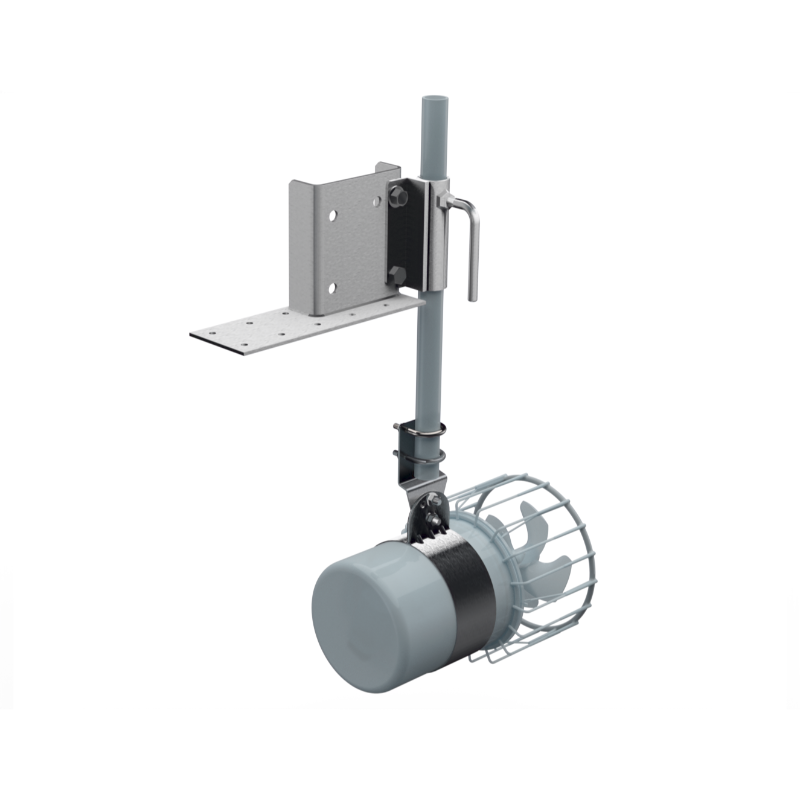

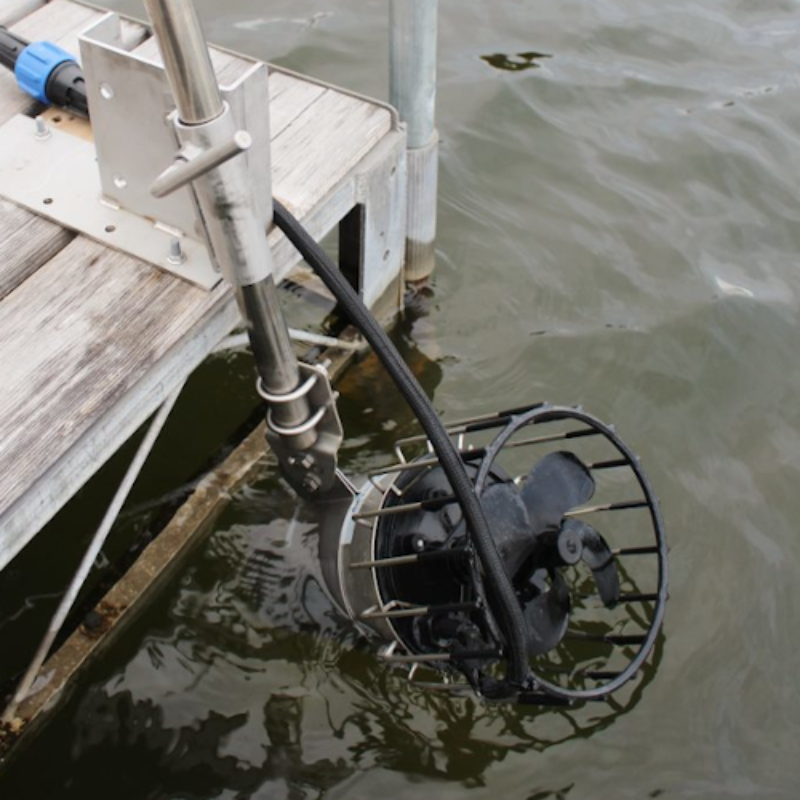

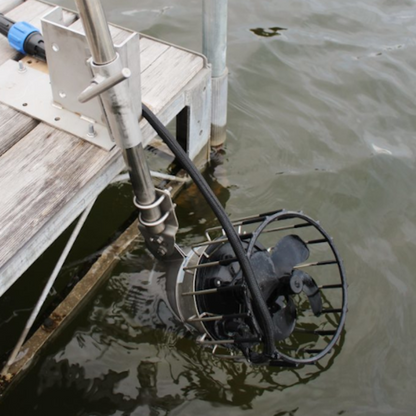

The Kasco Universal Dock Mount is crafted from durable stainless steel, providing a reliable option for installing De-icers and AquatiClear Circulators on docks, pilings, and various waterfront properties. With straightforward assembly and installation, you can easily adjust the position of your units for optimal water movement. The Simple Swivel bracket allows for easy rotation, directing water flow exactly where you need it. This mount is compatible with 1-inch / 25 mm nominal threaded or unthreaded pipes (to be supplied by the customer), making it a customizable choice for your aquatic needs.

Features of the Universal Dock Mount

• Compatible with 1/2, 3/4, and 1HP units
• Mountable on walls, pilings, docks, or other structures
• Multiple pre-drilled holes for various mounting options
• Shoulder bolt and pivot point for easy installation

Tools & Supplies Needed

• 1” (schedule 40 minimum) galvanized or stainless steel pipe (1-5/16’’ outer diameter), max 10’ long. Not included.
• Eight 5/16’’ lag screws or bolts for mounting base.
• 3/4’’ wrench
• 3/4’’ socket wrench
• 9/16’’ socket wrench
• 9/16’’ wrench

Note: Installation may require assistance. The user must provide the appropriate hardware to secure the mounting bracket to the dock or piling. Stainless steel is recommended.

Package Includes

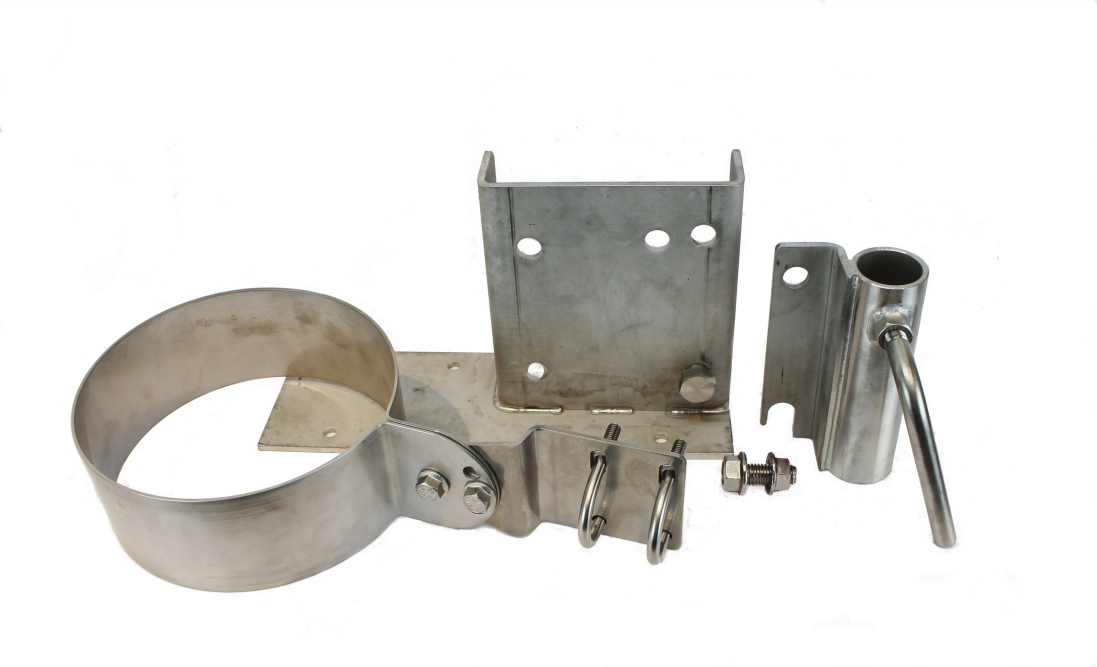

• Mounting brackets and hardware.

Kasco Universal Mount Manual

Kasco Universal Mount Manual

Note: This product is subject to a 10% restocking fee if returned, as mandated by the manufacturer.
