- Oil-free, low RPM, motor provides quiet operation and a long life

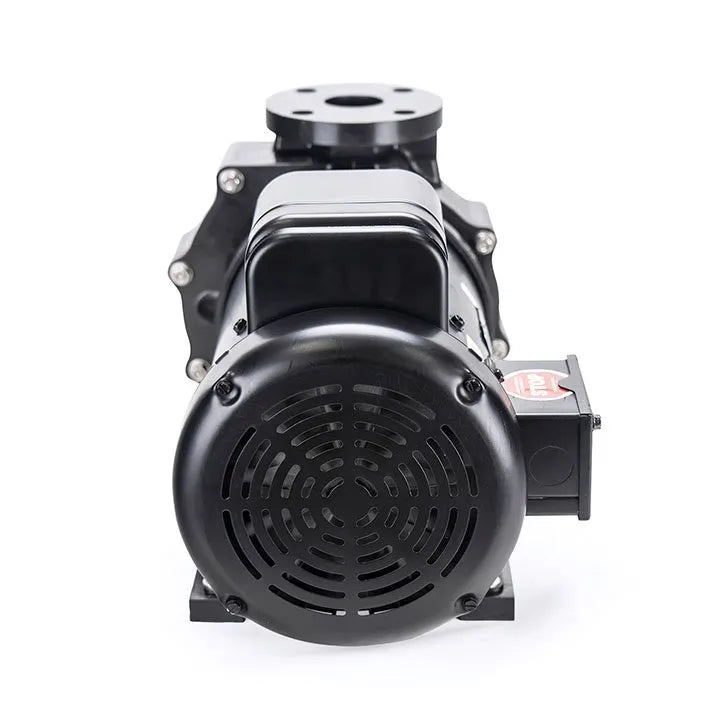

- Totally Enclosed Fan-Cooled Motor (TEFC)
- Junction box located on pump motor allows 115V or 230V electric to be customized on site

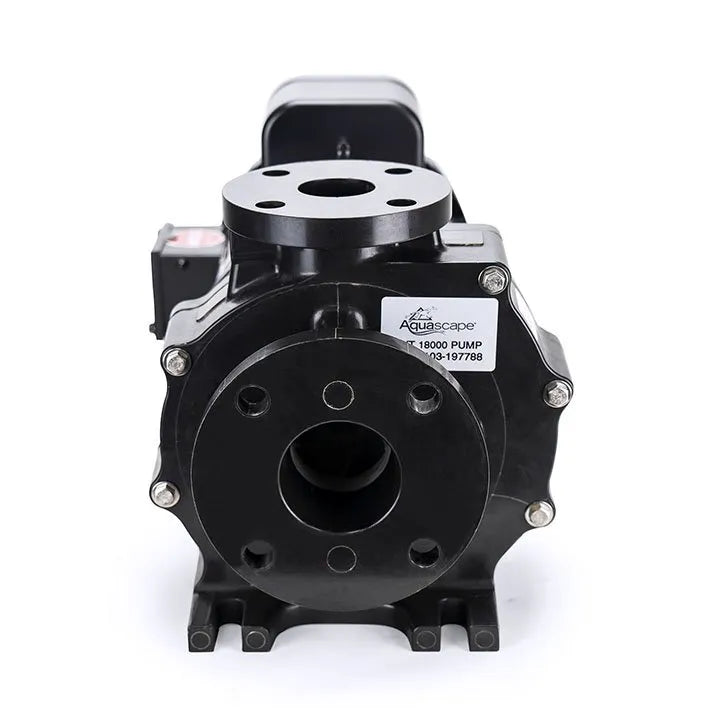

- 3″ – 4 bolt flanged Inlet
- 2″ – 4 bolt flanged discharge
- Semi-closed vane impeller provides efficient water flow and can pass spherical solids up to .75″ in diameter
Pump Flow Chart - EXT
| Model | Max Head Height | Application Head Height | ||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0' | 5' | 10' | 15' | 20' | 25' | 30' | 35' | 40' | 45' | 50' | ||||||||||||||||||||||||||||||||||||||||||||
| 12000 | Add to Cart | 21' | 12000 | 11500 | 9916 | 7760 | 4245 | |||||||||||||||||||||||||||||||||||||||||||||||
| 12000-3P | Add to Cart | 21' | 12000 | 11500 | 9916 | 7760 | 4245 | |||||||||||||||||||||||||||||||||||||||||||||||
| 18000 | Add to Cart | 45' | 18000 | 17000 | 16500 | 15600 | 14332 | 13000 | 11700 | 9832 | 7720 | 3600 | ||||||||||||||||||||||||||||||||||||||||||
| 18000-3P | Add to Cart | 45' | 18000 | 17000 | 16500 | 15600 | 14332 | 13000 | 11700 | 9832 | 7720 | 3600 | ||||||||||||||||||||||||||||||||||||||||||
