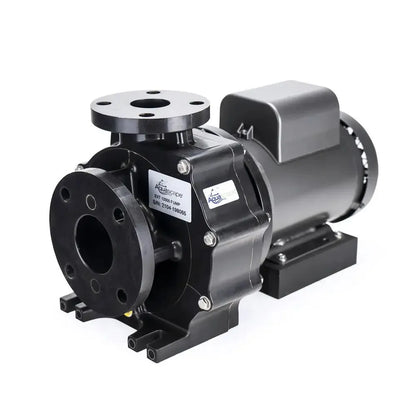

- Oil-free, low RPM, motor provides quiet operation and a long life
- Totally Enclosed Fan-Cooled Motor (TEFC)
- Junction box located on pump motor allows 115V or 230V electric to be customized on site

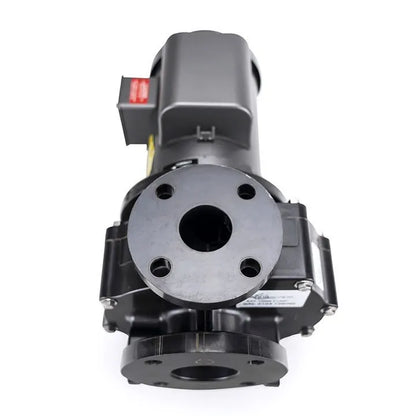

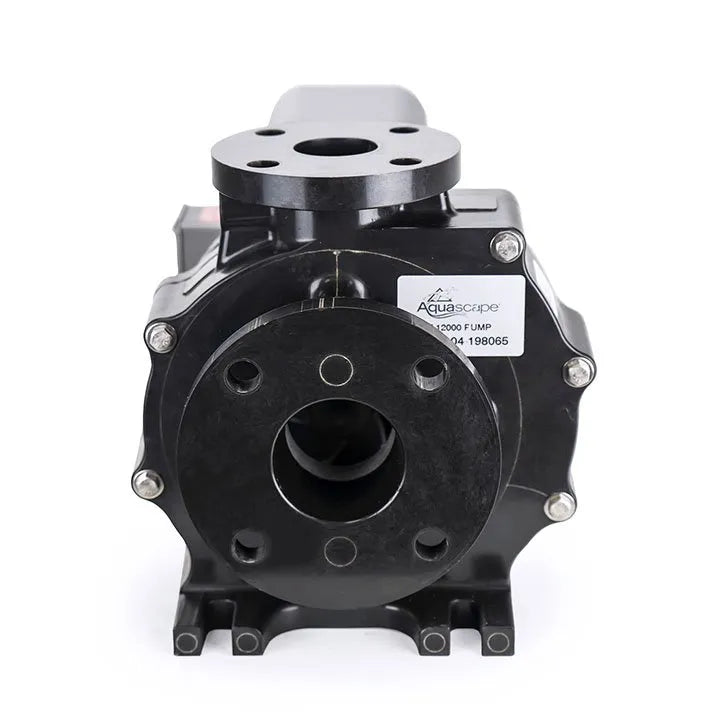

- 3″ – 4 bolt flanged Inlet
- 2″ – 4 bolt flanged discharge
- Semi-closed vane impeller provides efficient water flow and can pass spherical solids up to .75″ in diameter
- The EXT 12000 comes standard with a 10-foot, 115V power cord. If special electrical requirements are needed the junction box on the pump motor allows for 115V or 230V electric to be customized on site to meet each project’s electrical requirements
Pump Flow Chart - EXT
| Model | Max Head Height | Application Head Height | ||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0' | 5' | 10' | 15' | 20' | 25' | 30' | 35' | 40' | 45' | 50' | ||||||||||||||||||||||||||||||||||||||||||||
| 12000 | Add to Cart | 21' | 12000 | 11500 | 9916 | 7760 | 4245 | |||||||||||||||||||||||||||||||||||||||||||||||
| 12000-3P | Add to Cart | 21' | 12000 | 11500 | 9916 | 7760 | 4245 | |||||||||||||||||||||||||||||||||||||||||||||||
| 18000 | Add to Cart | 45' | 18000 | 17000 | 16500 | 15600 | 14332 | 13000 | 11700 | 9832 | 7720 | 3600 | ||||||||||||||||||||||||||||||||||||||||||
| 18000-3P | Add to Cart | 45' | 18000 | 17000 | 16500 | 15600 | 14332 | 13000 | 11700 | 9832 | 7720 | 3600 | ||||||||||||||||||||||||||||||||||||||||||
