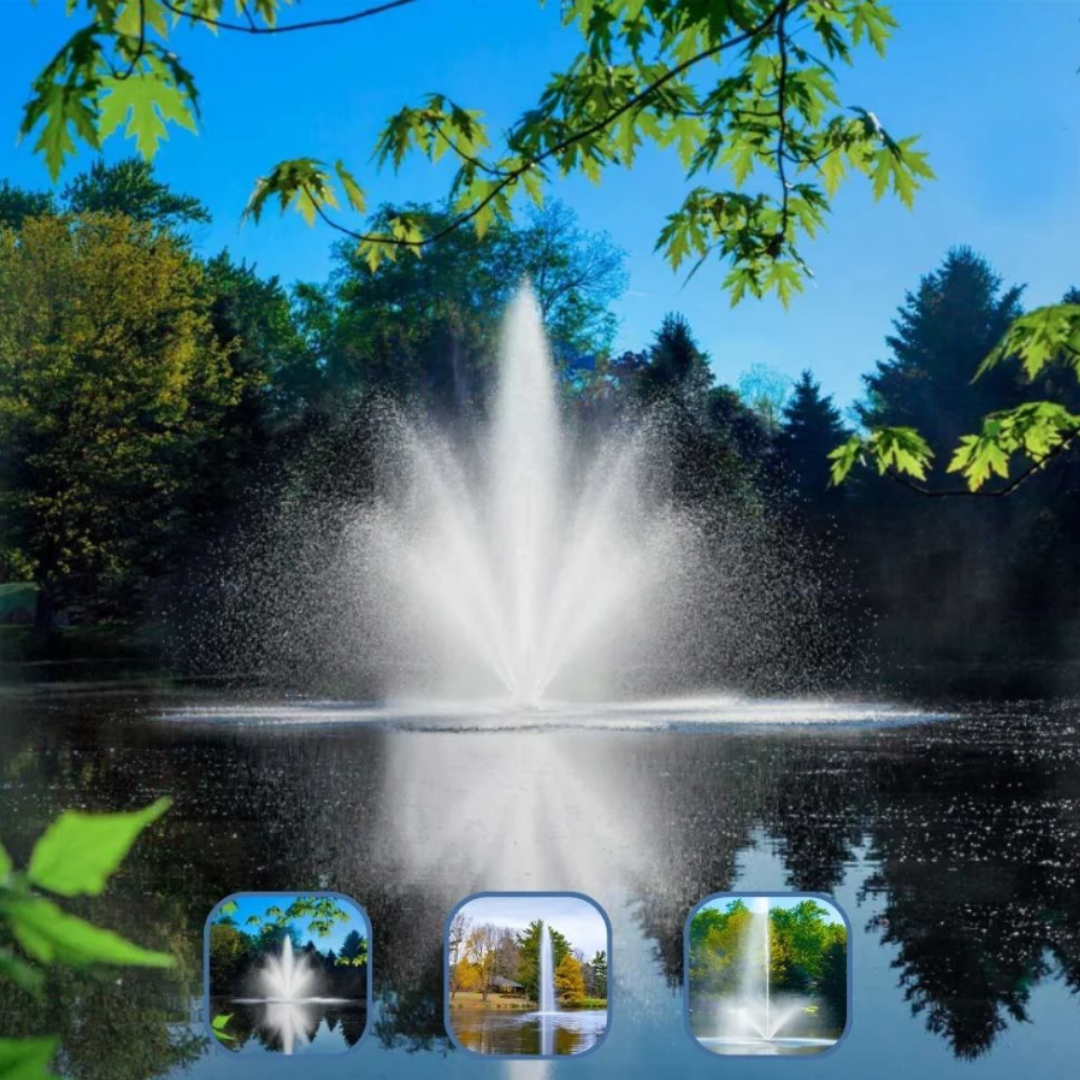

Scott Aerator Triad Pond Fountain

Description

1 HP Spray Sizes



1.5 HP Spray Sizes



3 HP Spray Sizes



• Floating pond & lake fountain with 3 display options.

• Scott Aerator fountains are the only fountains on the market designed for 4-season operation. Built to operate in all temperatures and can be left in the water during the winter whether the unit is running or not.

• Comes with fountain pump, 3 nozzles, float, bottom screen and power cord.

• Nozzles included: Cambridge, Skyward & Gusher.

• Optional lights, additional nozzles & timers available.

• Designed for 24-hour, 4-season operation.

• Easy installation, requires no maintenance.


• Available in 1 HP, 1.5 HP and 3 HP.

• Approved for use in salt water.

• 5-year motor warranty.

• ARL tested and approved to be in compliance with the applicable requirements of UL and the National Electric Code as complete packages.

• GFCI required. Please disconnect power source when swimmers are present.

• Common Applications include HOA’s, Golf Courses, Recreational Ponds & Lakes, Commercial Properties, Country Clubs, Retention Ponds, Farm Ponds and  Business Parks.

Fountains included in this package

• Cambridge Fountain

• Skyward Fountain

• Gusher Fountain

LED Lights (Optional)



• Can be purchased now or added later. Light sets simply screw on to float.

• 2-light sets recommended for 1.5 HP and below.

• 4-light sets recommended for 2 HP & 3 HP.





Timers (Optional)

• Can be purchased now or added later.

• Timers are only made to control fountains, not lights.

• Answer to FAQ: The difference between the residential and commercial 230V timer is the residential box is plastic and the commercial box is metal. Both perform the same function.





Our Triad fountain, the newest addition to the Scott Aerator Company product range, will provide your outdoor paradise with a stunning focal point while also significantly enhancing the health of your pond. Both 115V and 230V motors are available for this lovely fountain. This water feature comes with three separate brass nozzles that can all be changed in a matter of minutes without the use of any tools.



All of the water features created by the Scott Aerator Company were developed to do away with the need for pricy, time-consuming winterizing supplies and procedures. Leave your fountain running, switch off the electricity, and ignore it all winter. Restore power to the device once the water thaws in the spring, and you're ready to go. All parts can resist temperatures below zero without suffering damage.

It has a strong, oil-free motor that is built to run continuously. You may be confident that this fountain will survive for many years because it also has a 5-year motor warranty. The Scott Aerator Triad Pond Fountain can circulate 75 gallons of water every minute, which will make for a stunning display in your lake or pond.

Features:

• The electric cable provided is 100 feet long, 12-gauge submersible, and has greater lengths available.
• Light kits can be added at purchase or at a later date.
• Approved for use in saltwater.
• Two 25-pound weights or concrete blocks are required for anchoring (not included).
• Two nylon ropes are required for anchoring (not included).
• They are designed for 24-hour-per-day operation.
• 34-inch minimum pond depth required.

Specs

Required Pond Depth





Electrical



Installation

1. Assemble The Unit

Assembly of Scott Aerator Fountains takes 15-20 minutes. Assembly instructions will be included with your fountain. Scott Aerator fountain kits come with the following:

• Pump with cylindrical casing and power cable attached
• Square float platform
• Protective stainless steel filter
• Decorative nozzle (this does not apply to the DA-20)
• 5/16"x2" stainless steel bolts
• Stainless steel nuts & washers
• Self tapping stainless steel screws



Tools Needed: You will need a wrench (or socket driver) and pliers.





Assembly Steps:

1. Begin by placing the fountain housing on a solid surface, with the pump discharge opening facing up.
2. Tie nylon rope (not included) to the two stainless steel eyebolts. These will be the anchoring lines for the fountain.
3. Next, put the float in place and secure with the two 5/16" x 2" bolts, washers and nuts included.
4. Now, turn the fountain upside down, remove the Styrofoam doughnut, and place the stainless steel filter in place. Be sure to line up the pre-drilled holes on the fountain with the position marks on the filter. Attach the filter with the
   three self-tapping screws provided.



2. Attach Lights (If you did not order lights, skip this step)



Scott Aerator fountain light kits simply attach to the square float platform. Scott Aerator light kits come with the following:



• (2) or (4) LED light fixtures with power cable
• 1/2" bolts & nuts
• (2) or (4) stainless steel arm brackets
• Timer/control unit
• Remote control (only for color-changing lights)



Tools Needed: Wrench & Pliers



*Please note: The included timer/control unit is required to operate the lights. Do not remove cord from control unit, this will void the lights' warranty.

Assembly Steps:

1. Attach each arm assembly to the water feature. Be sure to orient the arms with “L” facing upward. Remove one of the 2" bolts attaching the float to your Scott water feature and align the holes with the stainless steel arm. Reinsert the bolt with washer, outward through the housing, float and stainless steel arm. Secure with washer and nut. Repeat for the remaining arm assemblies.
2. Continue by attaching each light to the slotted end of the stainless steel arms. Feed 1/2" x 1/4" bolt downward through each light bracket and steel arm then secure with 1/4" nut. The lights can be positioned along the arm by loosening the lock nut, sliding the light to the desired position, then re-tightening the nut.
3. Connect the lights to the Timer Control Unit by aligning pins and screwing the connector together 1/2 turn only. Do not force the connection tight or you may damage the O-ring or wiring.



3. Place in water

• Once the unit is assembled, it is ready to be placed in the water for final preparation and anchoring.
• Care should be used when handling the fountain; it is very important that the weight of the fountain not be placed upon the stainless steel filter.
• Once the fountain head is in the water, attach the fountain head by screwing it into place (this does not apply to the DA-20).
• Float the fountain to the desired position and secure the attached nylong ropes to shore or use 2 concrete blocks submerged at least 20 feet apart.
• The final step is to plug your fountain and lights into your established power source. Always use a ground fault circuit interrupter (GFCI) and a licensed electrical contractor to install your power source.

Buying Guide

Choosing Horsepower

• Horsepower will affect the size and flow rate of your fountain's spray. The higher the horsepower, the more water it will move, and the larger and/or thicker the spray will be.

• Choosing a horsepower will depend on your budget and pond size. This step is largely up to you, but a good rule of thumb is to make sure there is at least 10 feet between the fountain spray and the edge of your pond.

Choosing Voltage

• When in doubt: Give us a call.

• If running 115V power to the edge of your pond, please take note of the maximum distances from pump to breaker (including the power cord you order).

• If running 230V to the edge of your pond, you generally will not have to worry about distance.







Choosing LED Lights (Optional)

• Can be purchased now or added later. Light sets simply screw on to float.

• Lights run on 110V and come with their own power cord.

• Option of single-color warm white LED lights or color-changing LED lights.

• Both options come with a programmable timer, and the color-changing lights come with a remote control that works up to 1,000 feet away.

• 2-light sets recommended for 1 HP and below.

• 3-light sets recommended for 1.5 HP and 2 HP.

• 4-light sets recommended for 3 HP.
