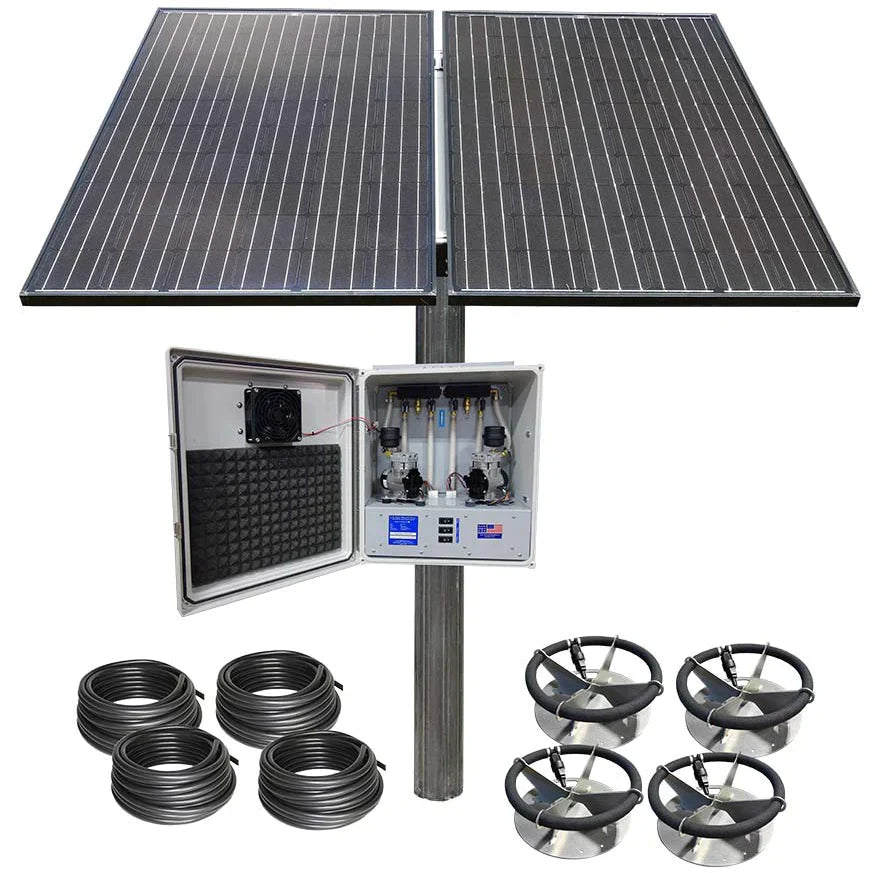

Scott Aerator Solar XL Sub-Surface Pond Aeration System

Keep your pond healthy and oxygenated with the Solar Pond Aeration System – Dual Compressor Kit, an efficient and eco-conscious alternative to grid-powered aerators. Featuring high-efficiency solar panels, whisper-quiet brushless compressors, and rugged American-made components, this system delivers reliable, high-volume aeration for ponds up to 5 acres—even in cloudy conditions.

Key System Highlights

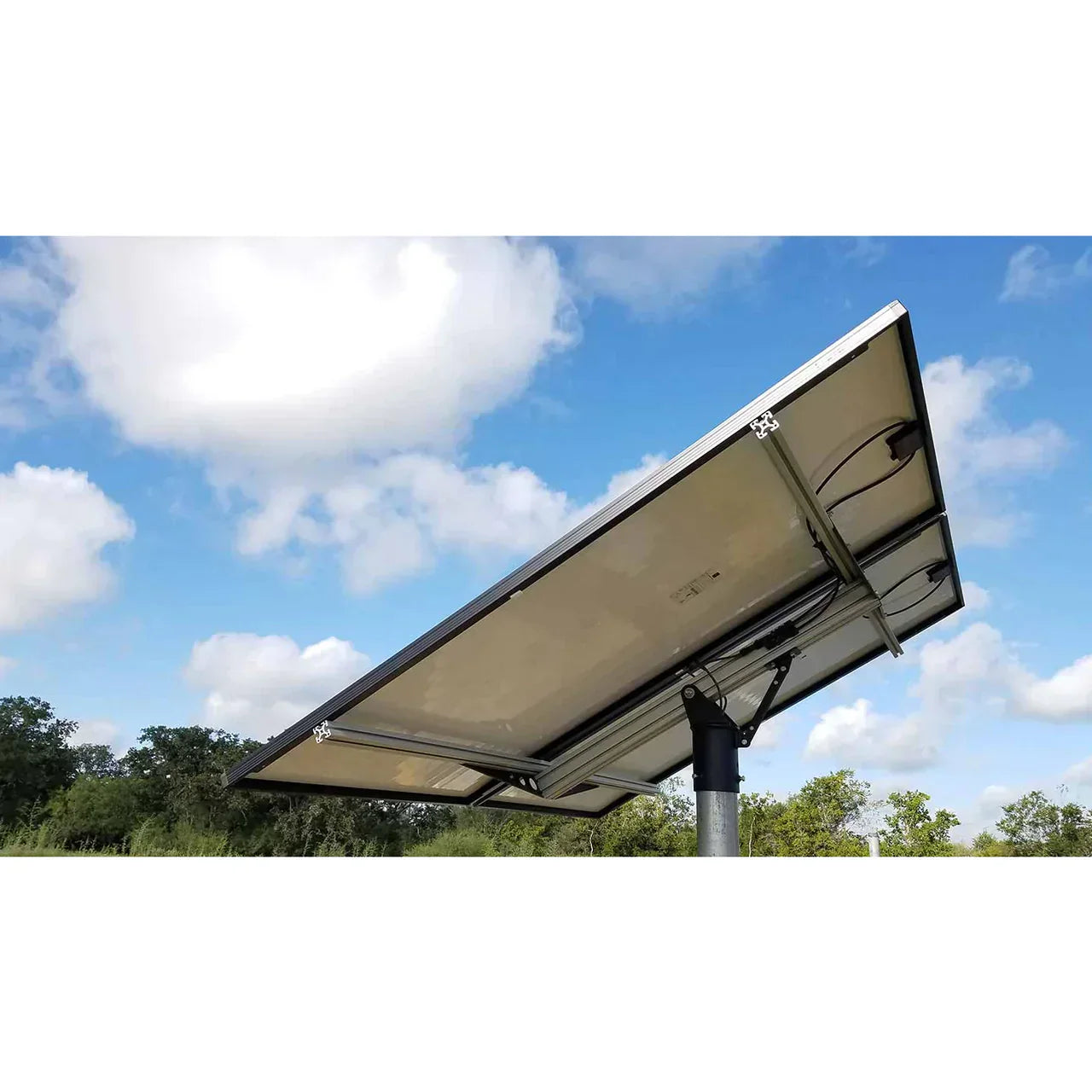

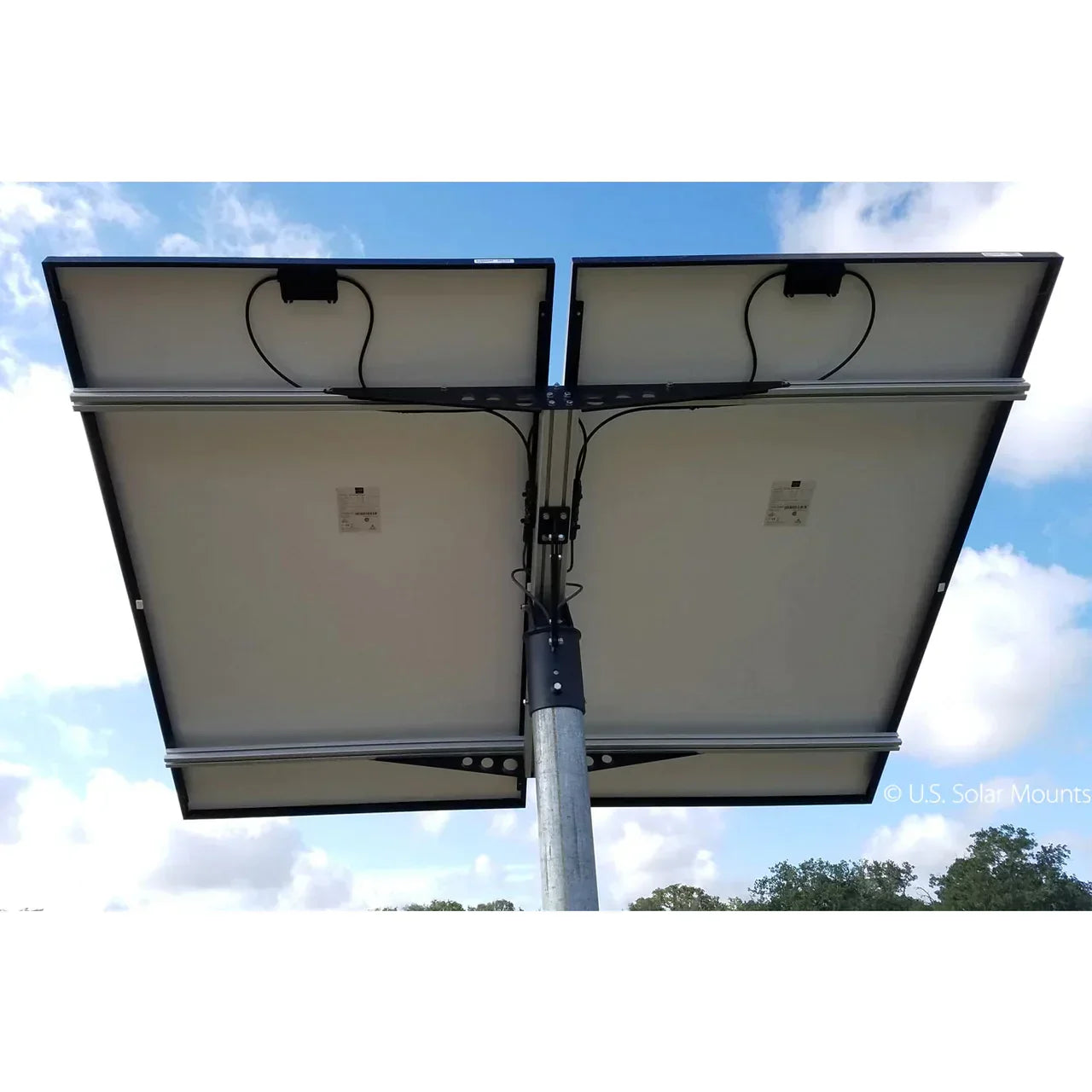

• Solar Module: 300-watt, 60-cell mono-crystalline solar panel (39" × 65") with fully adjustable top-of-pole mount
• Power Management: Individual rocker-style circuit breakers for panel protection
• Compressors: Two ultra-efficient, brushless, rocking-piston air compressors for continuous-duty use
• Air Output: 5 SCFM at 30'+ depth and up to 25 PSI—ideal for deep pond applications
• Noise Rating: Operates under 67 dB @ 6 feet (low-frequency acoustic insulation system)
• Airline: Four 3/8" × 100' high-grade weighted airline hoses
• Diffusers: Four self-weighted rubber membrane diffusers for optimal bubble dispersion
• Cooling: 110 CFM automatic active ventilation fan to extend compressor life
• Controller: Digital motor controller extends compressor life up to 300%
• Pressure System: Brass automatic pressure relief valve with a liquid-filled stainless steel gauge
• Valves: Four full-flow brass ball valves for efficient air distribution

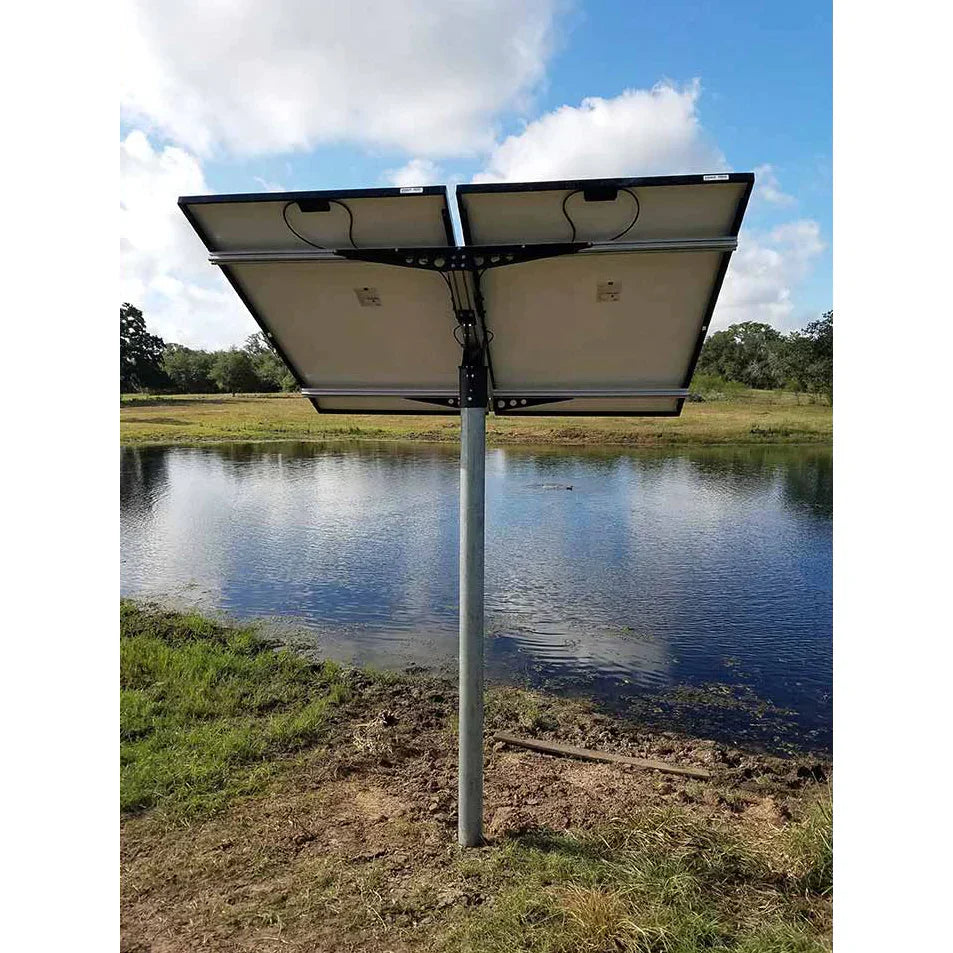

• Mounting: Requires a 3" galvanized pole (3.5" OD) approximately 10 ft long – not included
• Warranty: Two-year full coverage on all components

Why Choose This Solar Aeration System?

• Low Cost of Ownership: No electricity bills or battery replacements required
• Reliable in Low Sunlight: Runs efficiently even on cloudy days
• Minimal Maintenance: Brushless design reduces wear and eliminates lubrication needs
• Exceptional Durability: Powder-coated steel base and corrosion-resistant fittings
• Whisper Quiet: Industry-leading sound reduction technology – quieter than many single-compressor systems
• Factory Tested: Each system is 100% tested before shipping for optimal performance and reliability

Recommended Applications

• Ponds and lakes (up to 5 acres)
• Fish farms and hatcheries
• Golf courses and parks
• Stormwater retention and wastewater treatment
• Livestock and agricultural water sources
• Weed and algae control zones
• Marinas and docks
• Remote off-grid properties and prepper installations
• Winter de-icing (prevent ice buildup in key areas)

This system is engineered for continuous-duty operation with minimal pressure loss and maximum air flow, all without the complexity or cost of grid power or battery banks.

Warranty Coverage

• Compressors & Motor System: 5 Years
• Solar Panel & Mounting Frame: 2 Years
• Airline & Diffusers: 1 Year
• Controllers & Electrical Components: 1–2 Years depending on item

All Scott Aerator products are backed by comprehensive warranties. The motor and compressor system is covered for five years, and all remaining components carry a minimum one-year warranty. If a component fails during the warranty period, it can be returned for factory inspection and full replacement coverage if deemed defective.

Note: Always disconnect power before maintenance or if swimmers are present.
