Scott Aerator Solar Pond Aerator - DA-20, 4-Panel

Upgrade your pond with the 3/4 HP Solar Powered DA-20 Display Aerator (4-Panel)—an eco-friendly, off-grid solution for maintaining clean, oxygen-rich water. With a powerful 300 GPM flow rate and stunning display, this floating fountain system is ideal for large ponds in remote or solar-only installations.

Key Features

• Flow Rate: 300 gallons per minute

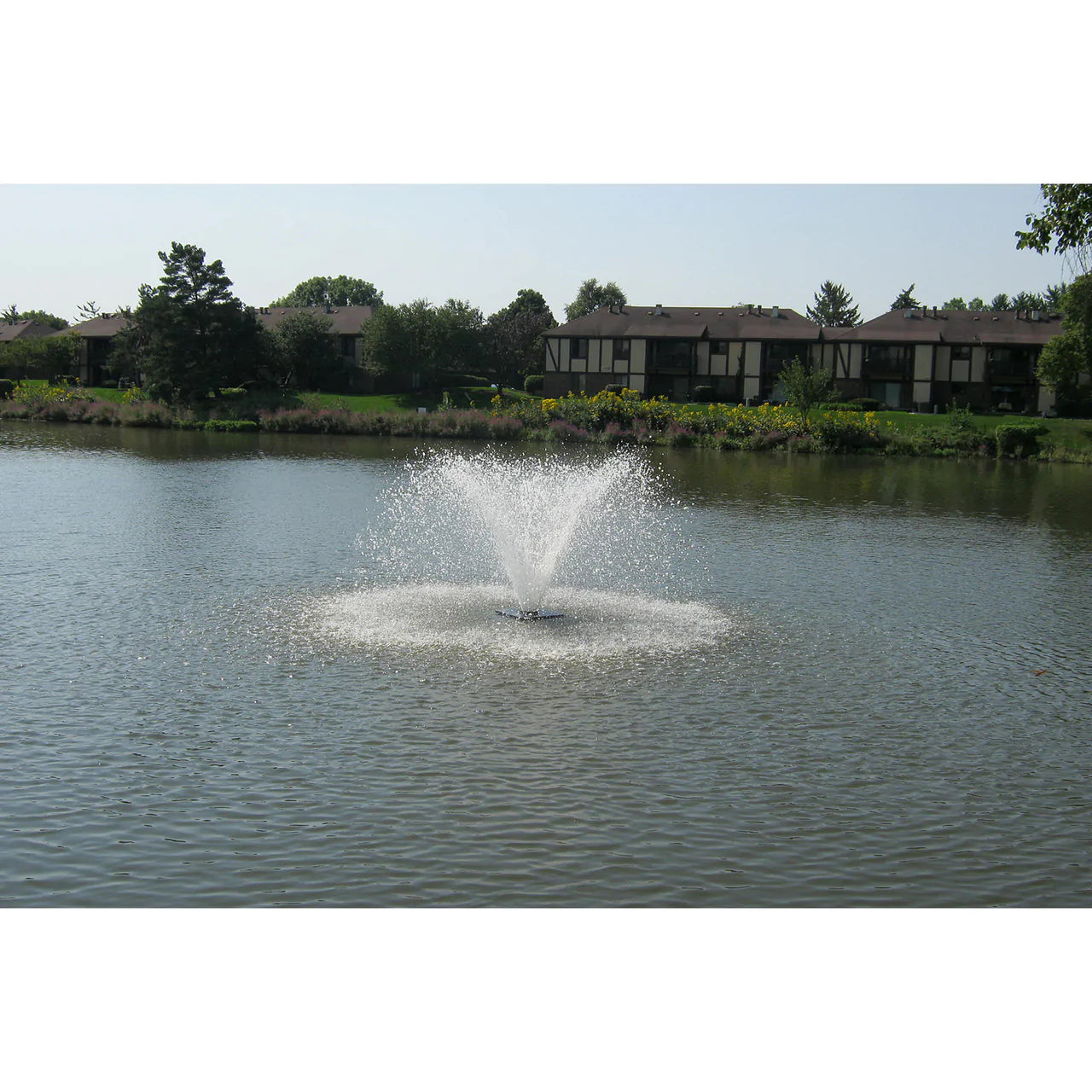

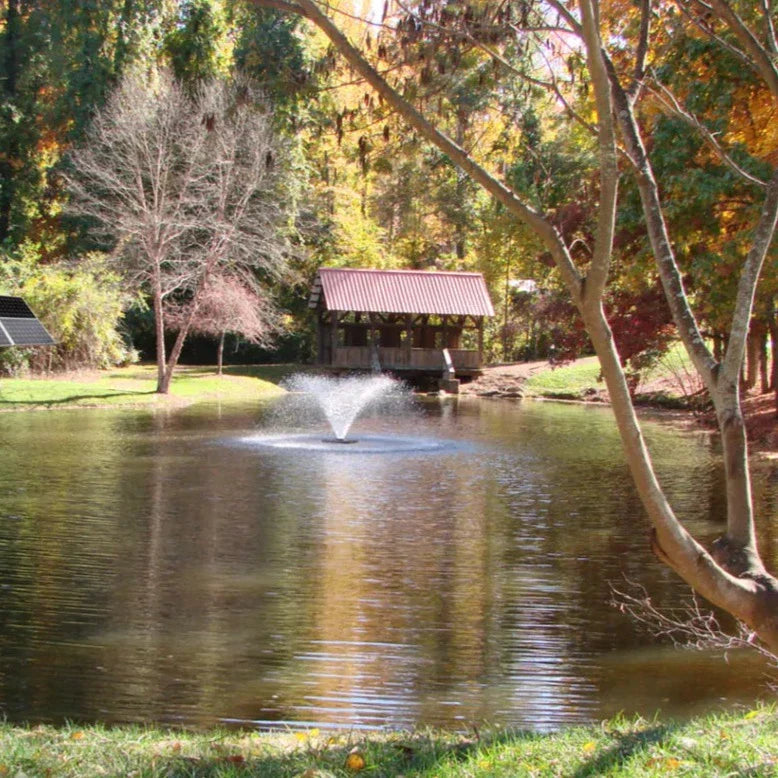

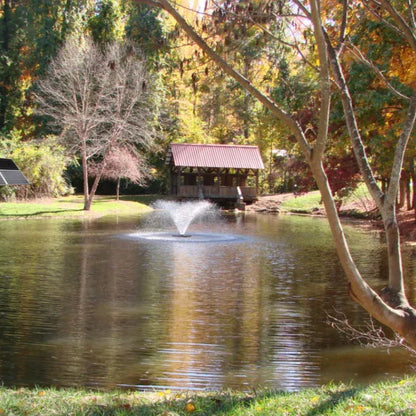

• Spray Pattern: 5 feet high × adjustable 9 to 20 feet wide
• Solar Panels: Four high-efficiency 325-watt mono-crystalline panels (39" × 65")
• Motor Specs: 100V, 3-phase, 60Hz, 8.6 amps, 810 watts
• Pond Depth: Minimum 32 inches
• Power Cord: 70 feet of 12-gauge submersible cable (extendable)
• Anchoring: Requires two 30 lb weights or concrete blocks (not included)
• Maintenance: Oil-free motor, zero maintenance required
• Warranty: 5-year motor warranty, 1–2 years on components
• Water Type: Safe for both fresh and salt water ponds

How It Works

This solar-powered pond aerator is engineered for day-only operation—no batteries required. Its solar panels gradually bring the aerator up to full speed based on sunlight intensity, delivering efficient water movement and oxygenation throughout the day. At night, the system powers down automatically to conserve energy.

The unit’s durable, stainless steel motor is fully submersible and requires no lubrication or servicing. It circulates water to reduce algae, eliminate surface debris, and minimize mosquito activity. It also boosts oxygen levels—helping fish thrive and breaking down muck and organic matter faster.

Winter-Ready Design

Like all Scott Aerator products, this model is engineered for year-round use with no need for winterization. Simply disconnect power during freezing conditions and reconnect it in spring—no draining, storage, or complicated procedures required.

What’s Included

• 3/4 HP DA-20 Display Aerator
• Four solar panels with support frame
• Fhoton™ drive solar inverter
• Disconnect box and all wiring components
• 70' 12-gauge submersible power cord (optional upgrade up to 150')

Note: You will need to supply a vertical mounting pole, concrete base, and anchor ropes or tethers for installation.

Specifications

Warranty Information

• Motor & Pump: 5 Years
• Non-Electric Components: 1 Year
• Power Cable: 1 Year
• Light Fixtures & Brackets: 2 Years
• Light Transformer: 1 Year
• Timers: 1 Year

Scott Aerator’s warranty ensures full coverage for motor defects within 5 years—no questions asked. Defective parts must be returned to the factory for inspection. Replacement parts will be shipped prepaid upon request.

For safety: always disconnect the power source when swimmers are present in the pond.
