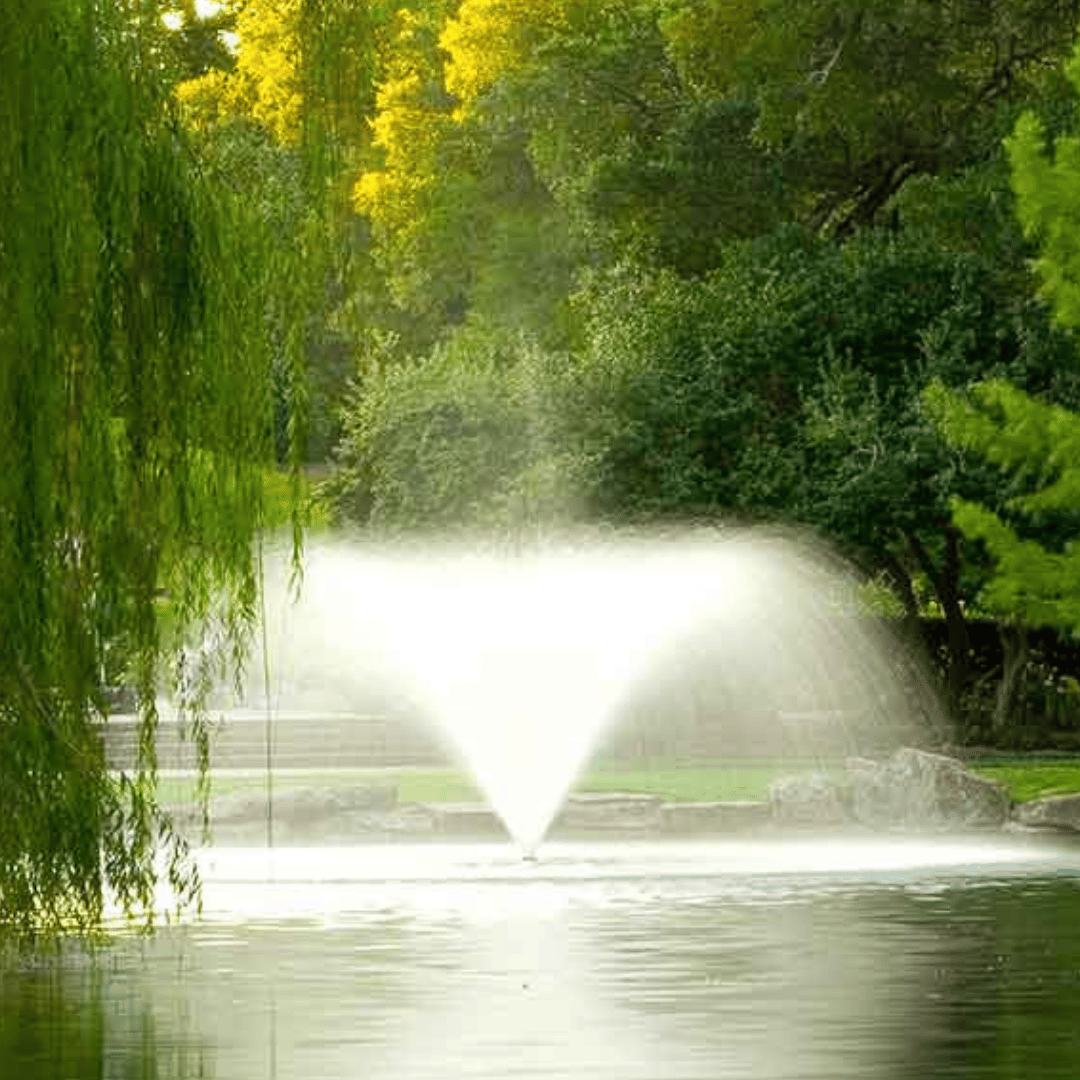

Scott Aerator DA-20 Display Pond Fountain
Scott Aerator DA-20 Display Pond Fountain
Couldn't load pickup availability
For 115V models, power cords can reach up to 100 feet from the breaker to the fountain. To prevent voltage drops over longer distances, consider our 230V models.
The 230V model requires an L6-20 plug and a 20 amp double pole breaker.
Key Features
- Designed for effective aeration in ponds and lakes.
- Functional throughout the year.

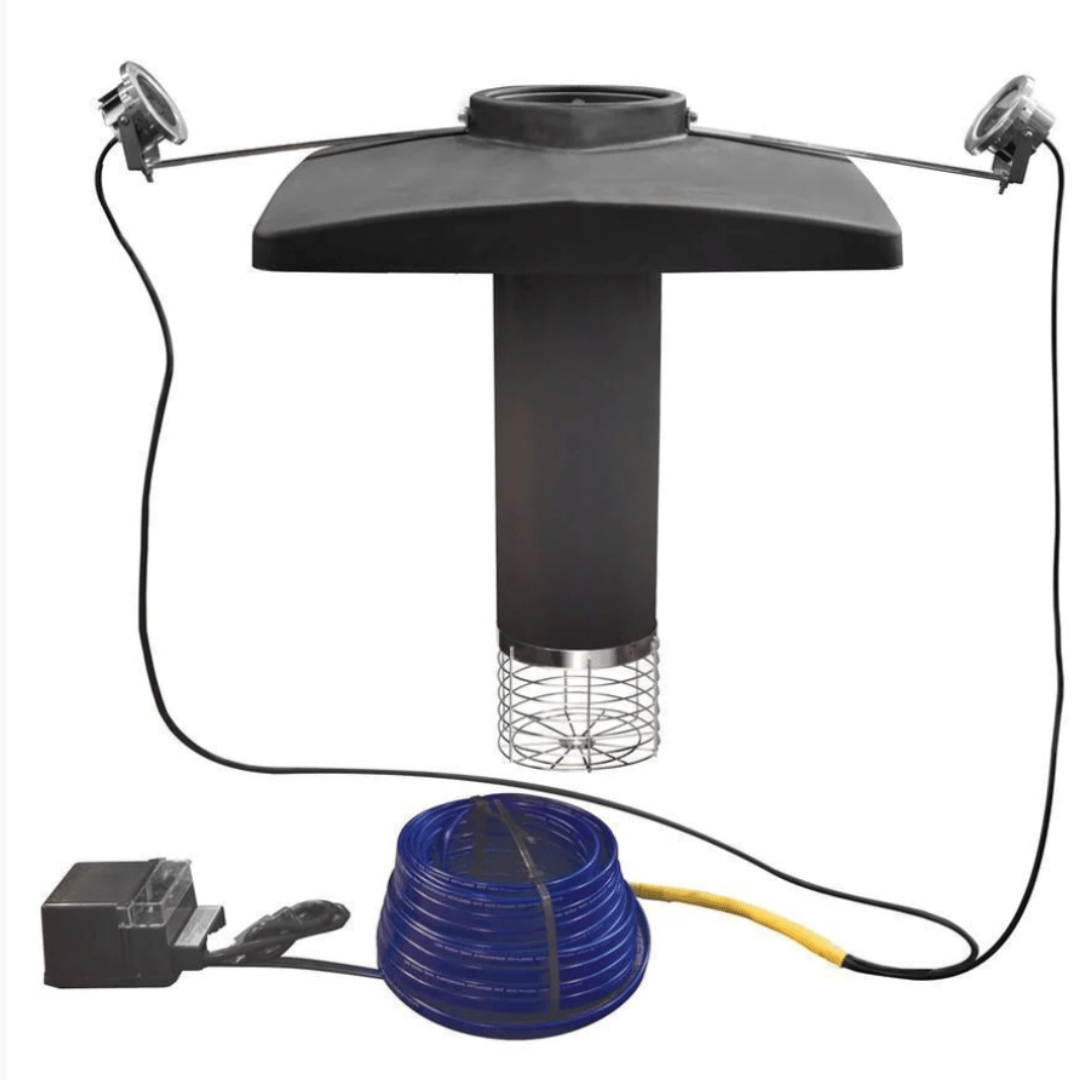

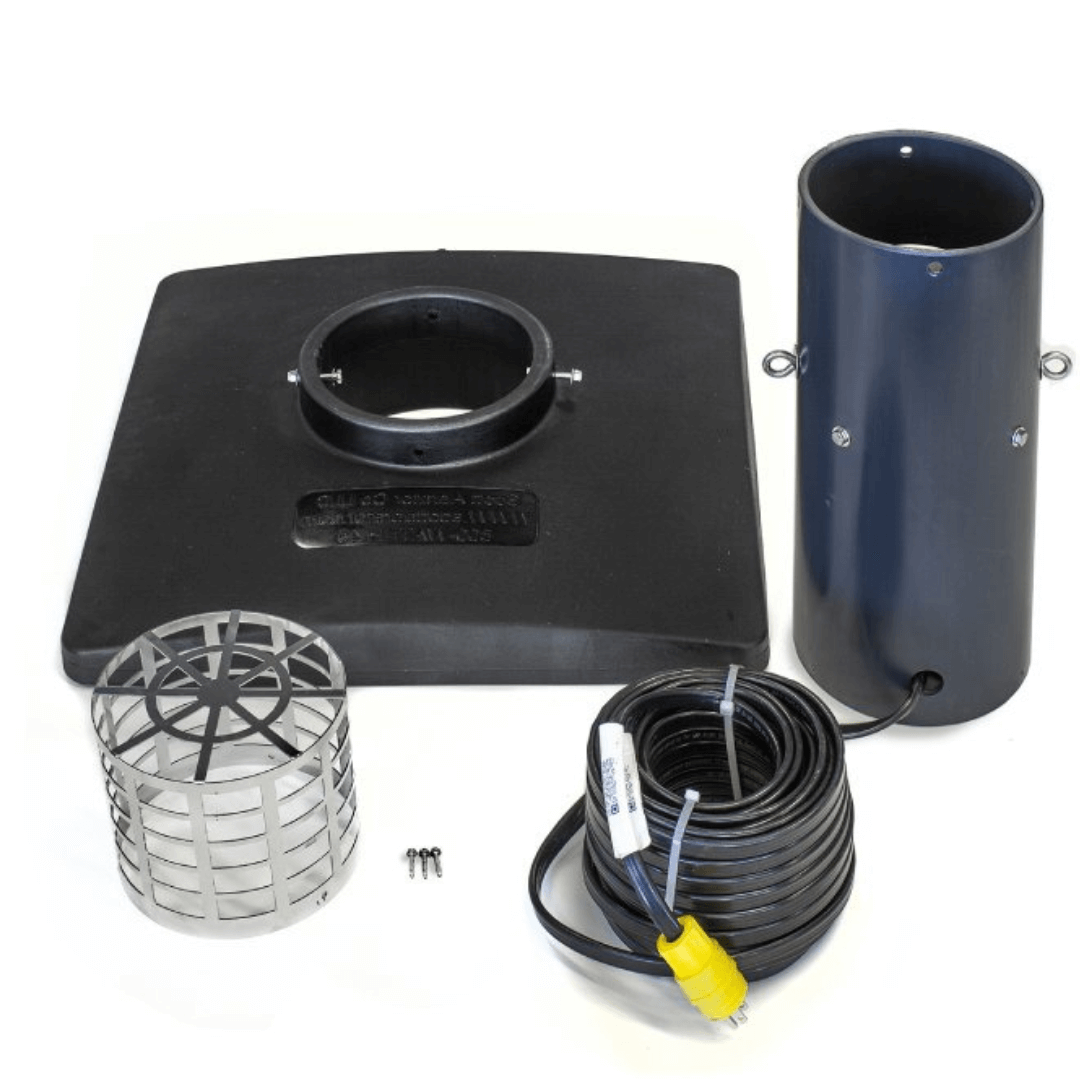

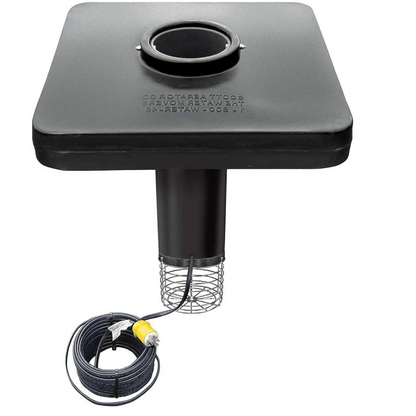

- Includes motor, float, debris screen, and power cord.
- Optional LED lighting and timers can be added during the initial order or later.
- Available in 7 different sizes.
- Features an oil-free, water-cooled motor.
- Suitable for saltwater use.
- Includes a 5-year warranty.
- GFCI is necessary. Disconnect power when swimmers are nearby.
- Tested and approved by ARL to meet UL and National Electric Code standards as complete systems.
Size Specifications
| Motor Size | Spray Height & Width | Aeration Capacity | Minimum Water Depth | Flow Rate | Voltage |
|---|---|---|---|---|---|
| 1/3 HP | 5 ft High x 18 ft Wide | Up to 0.75 Acre | 32 Inches | 300 gallons/min | 115V or 230V |
| 1/2 HP | 6 ft High x 22 ft Wide | Up to 1 Acre | 34 Inches | 400 gallons/min | 115V or 230V |
| 3/4 HP | 6.8 ft High x 25 ft Wide | Up to 1.25 Acre | 36 Inches | 450 gallons/min | 115V or 230V |
| 1 HP | 7 ft High x 25 ft Wide | Up to 1.5 Acres | 36 Inches | 500 gallons/min | 115V or 230V |
| 1.5 HP | 10 ft High x 25 ft Wide | Up to 2 Acres | 38 Inches | 600 gallons/min | 230V only |
| 2 HP | 11 ft High x 26 ft Wide | Up to 2.5 Acres | 42 Inches | 700 gallons/min | 230V only |
| 3 HP | 11 ft High x 33 ft Wide | Up to 3 Acres | 60 Inches | 10,200 gal/hr | 230V only |
Warranty Information
| Component | Warranty Duration |
|---|---|
| Motor & Pump | 5 Years |
| Non-Electric Components | 1 Year |
| Power Cable | 1 Year |
| Light Fixtures & Brackets | 2 Years |
| Light Transformer | 1 Year |
| Fountain Timers | 1 Year |
All standard products from Scott Aerator Company come with a five-year warranty for motor defects in materials or workmanship. Other components are covered for one year from the purchase date. Scott Aerator Company will replace defective parts under warranty when the faulty unit is returned to the factory, with shipping costs covered by the customer. The unit must be sent back before replacement parts are shipped. All replaced parts will be returned with shipping prepaid. Neither Scott Aerator Company nor Pond Fountain Depot is responsible for any consequential damages or costs related to removal or repair attempts in the field.
Electrical Specifications
Amp Draw & Power Consumption
| Motor Size | Amp Draw | Watts |
|---|---|---|
| 1/3 HP 115V | 8 | 670 |
| 1/3 HP 230V | 4 | 670 |
| 1/2 HP 115V | 10 | 670 |
| 1/2 HP 230V | 5 | 670 |
| 3/4 HP 115V | 11.5 | 875 |
| 3/4 HP 230V | 8.2 | 940 |
| 1 HP 115V | 11.5 | 1090 |
| 1 HP 230V | 8.2 | 1210 |
| 1.5 HP 230V | 10.6 | 1770 |
| 2 HP 230V | 12.6 | 2280 |
| 3 HP 230V | 14 | 3000 |
Cable Specifications & Maximum Distance from Breaker
| Motor Size | #12 | #10 | #8 |
|---|---|---|---|
| 1/3 HP 115V | 170' | 270’ | 420’ |
| 1/3 HP 230V | 680' | 1080' | 1680' |
| 1/2 HP 115V | 160' | 250' | 390' |
| 1/2 HP 230V | 650' | 1020' | 1610' |
| 3/4 HP 115V | 125’ | 200’ | 300’ |
| 3/4 HP 230V | 480' | 760' | 1200' |
| 1 HP 115V | 100' | 150’ | 225' |
| 1 HP 230V | 400' | 630' | 990' |
| 1.5 HP 230V | 310' | 480' | 770' |
| 2 HP 230V | 250' | 390' | 620' |
| 3 HP 230V | 190' | 300' | 470' |
Documentation
Common Questions
Q: How do I select a fountain?
A: Your choice depends on your goals: aeration, visual appeal, or both. For aeration or both, we suggest our Aerating Fountains due to their high flow rates. For aesthetics, explore the various display options and ensure your pond meets the minimum depth requirements and that the display size is suitable.
Q: How do I determine the horsepower needed?
A: Horsepower affects the size of the spray pattern. Ensure your pond meets the minimum depth requirements for the selected horsepower and that the spray won't splash the pond's edges. For ponds a quarter acre or larger, choose based on desired appearance and budget.
Q: Is professional installation necessary for my fountain?

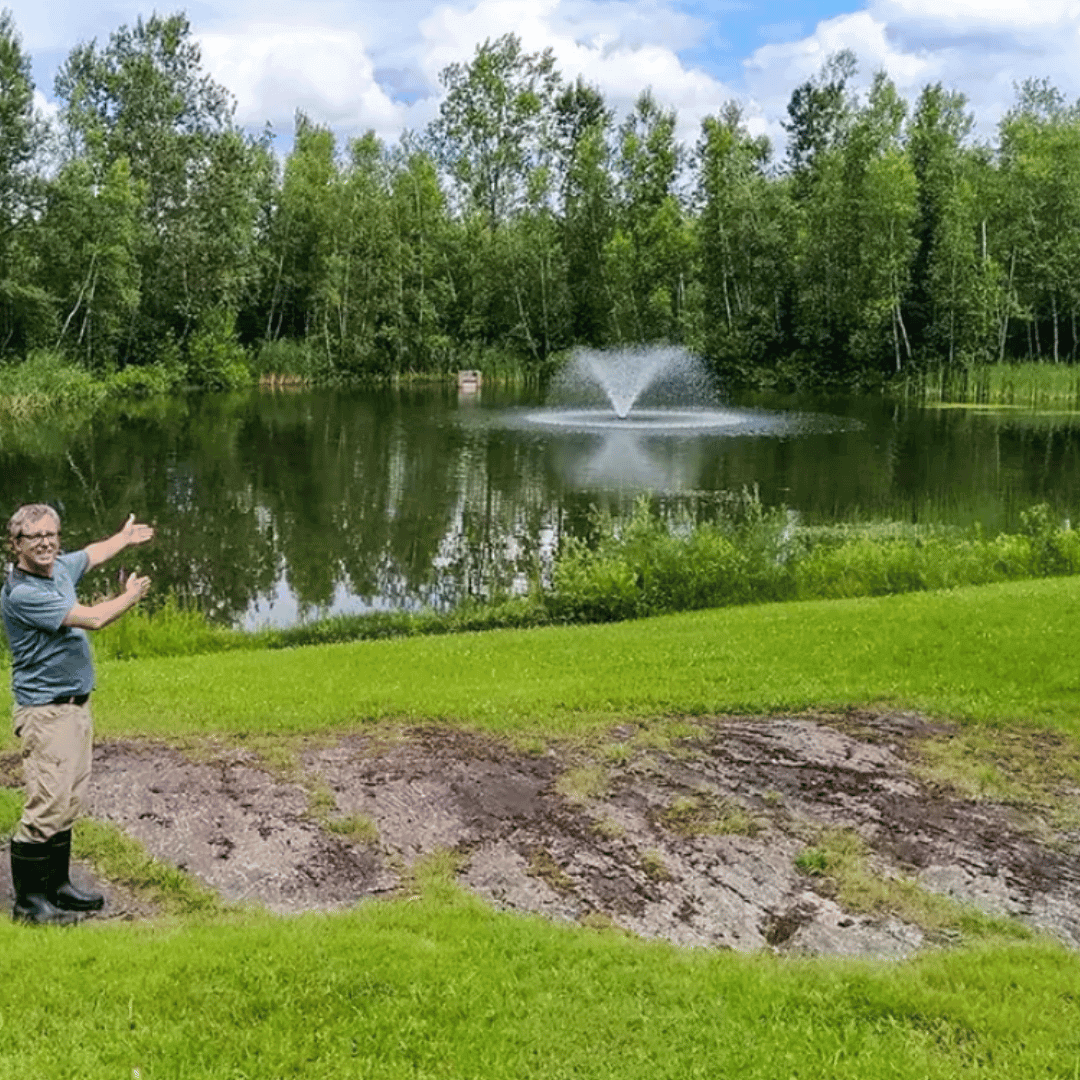

A: If there is no power source near the pond, consult a licensed electrician. Fountain installation is simple, and many customers opt to install their own to save costs. Fountains float in the pond, anchored on two sides, and connect to the power source via a submersible cord.
Q: How do I choose between 110-120V and 220-240V?
A: If your power source is over 70 feet from the main breaker, select 220-240V to ensure sufficient power. Confirm that your power source can accommodate higher voltage to prevent inconsistent performance.
Q: Are lights included with the fountain?
A: Lights are not included but can be purchased with the fountain or later. They easily attach to the floating unit and are highly recommended.
Q: Why is the power cord costly?
A: The price reflects the materials used. Depending on the fountain, the power cord is made from 14-gauge to 4-gauge copper or stainless steel wire.
Q: Can I leave my fountain in the water during winter?
A: Scott Aerator Fountains can function in winter. They should either run continuously or be completely turned off during the winter months. Once the water thaws, simply turn them back on.
