For 115V models, power cords can reach up to 100 feet from the breaker to the fountain. If you need a longer cord, consider our 230V models to prevent power loss.
The 230V model requires an L6-20 plug and a 20 amp double pole breaker.
Product Features

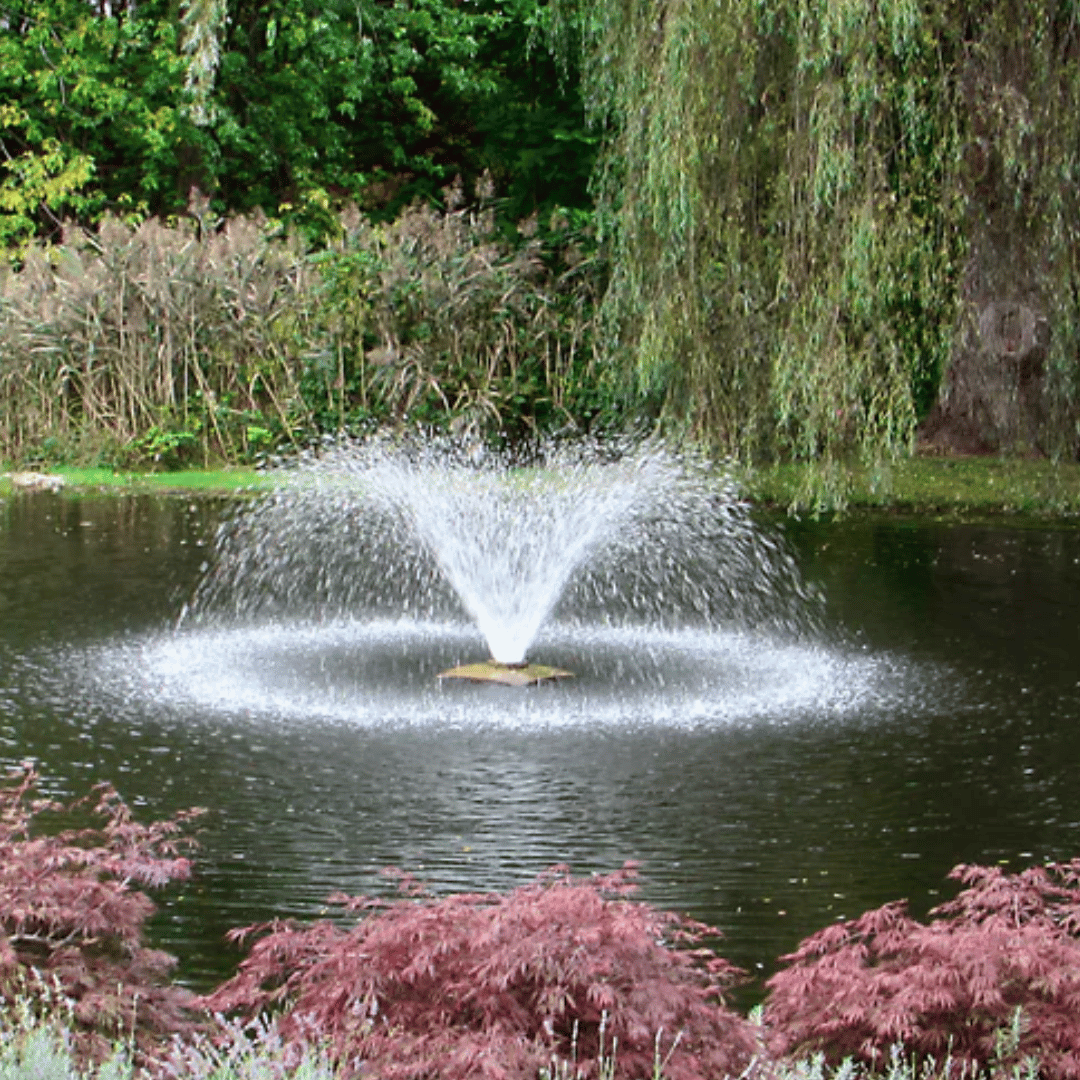

- Designed for effective aeration in ponds and lakes.
- Operates year-round in various climates.

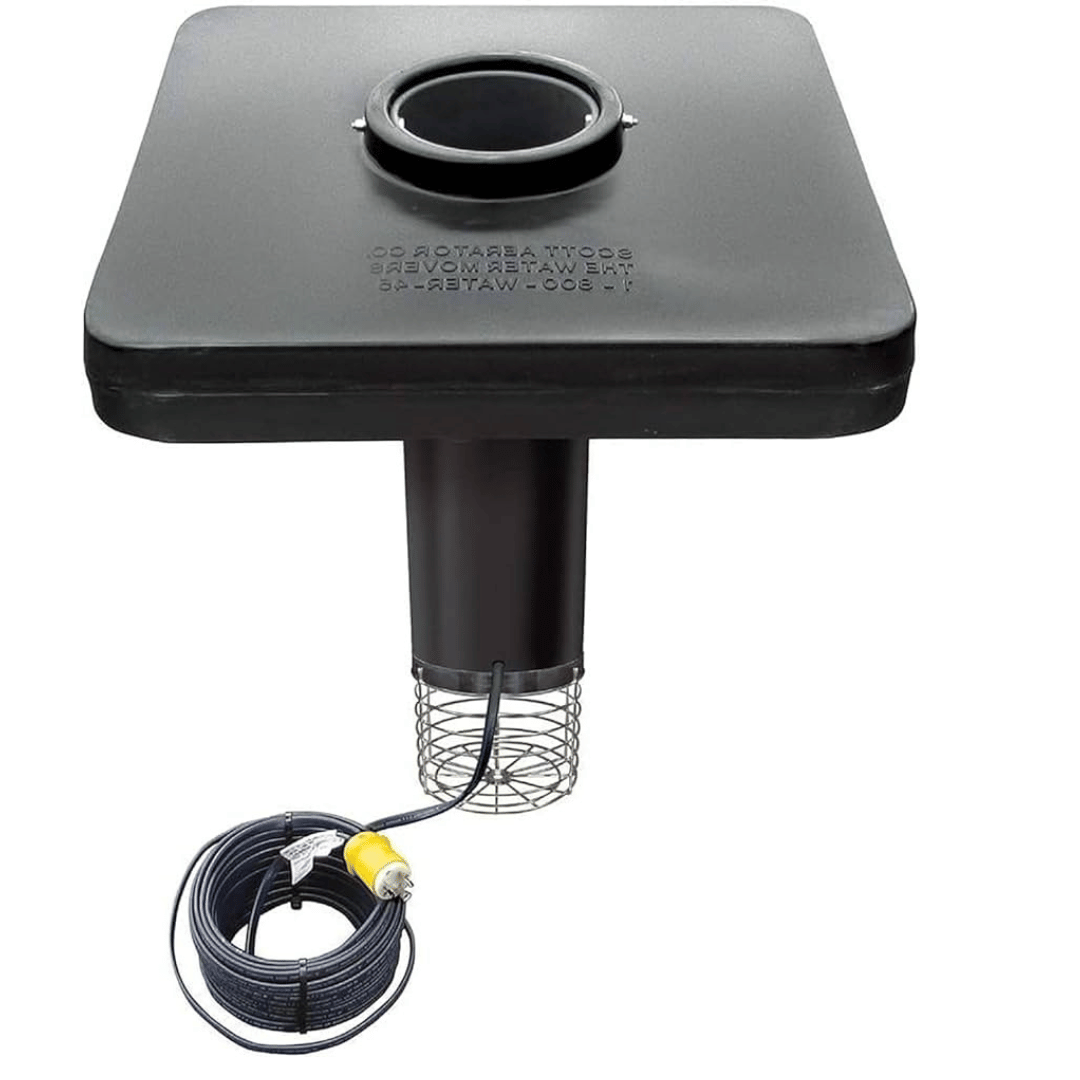

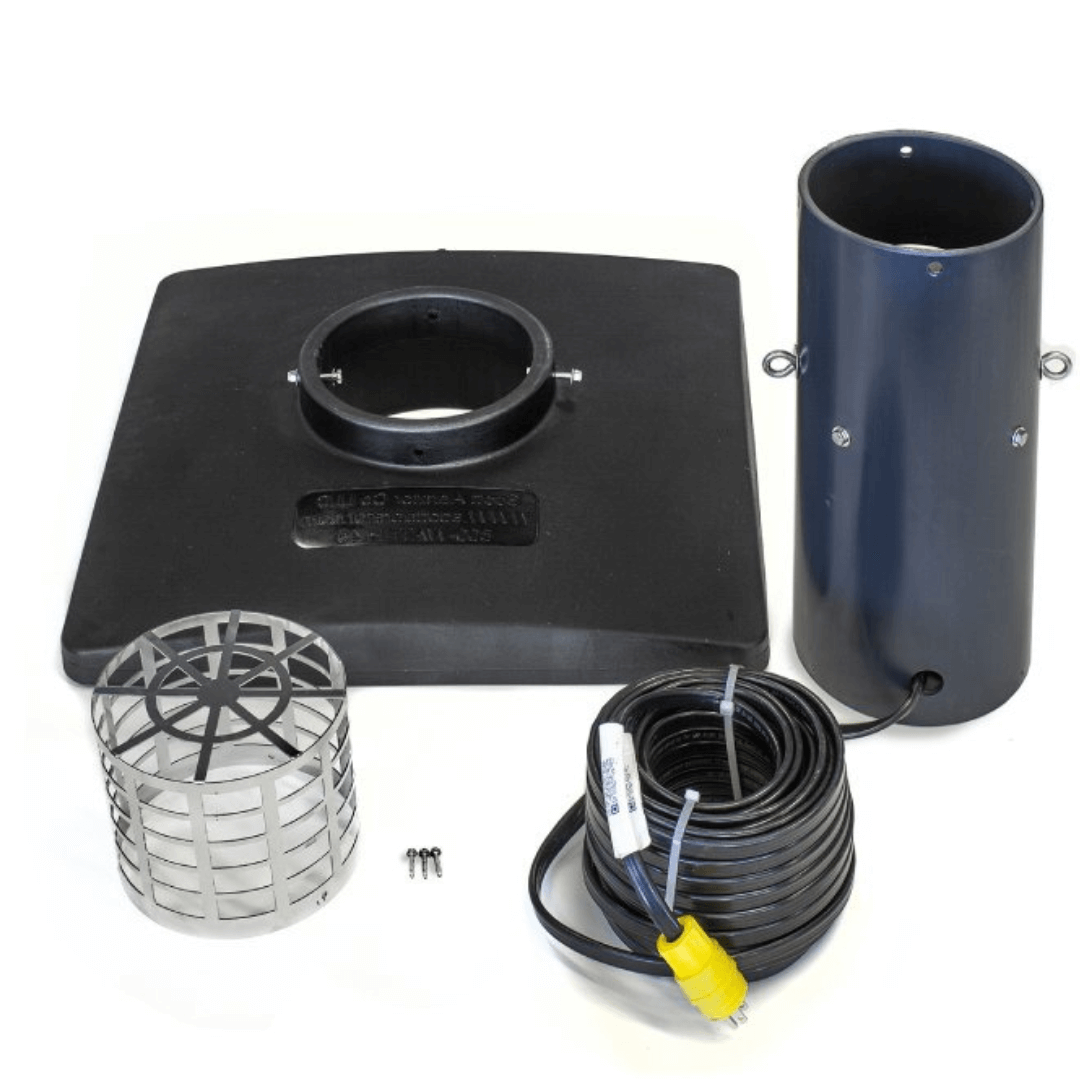

- Includes fountain motor, float, debris screen, and power cord for easy setup.

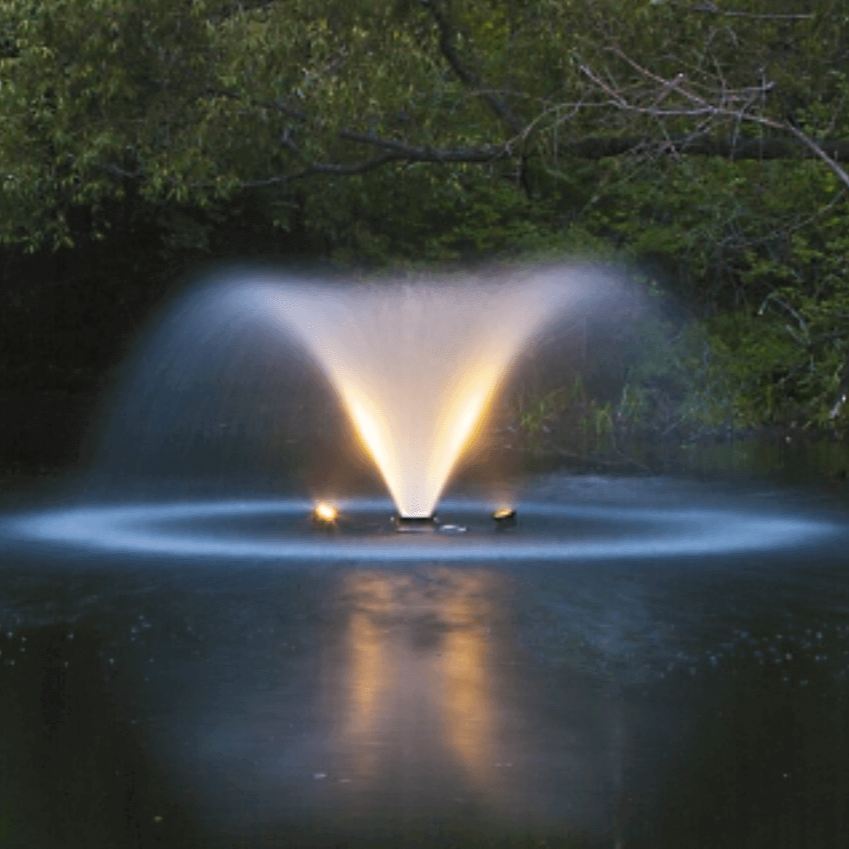

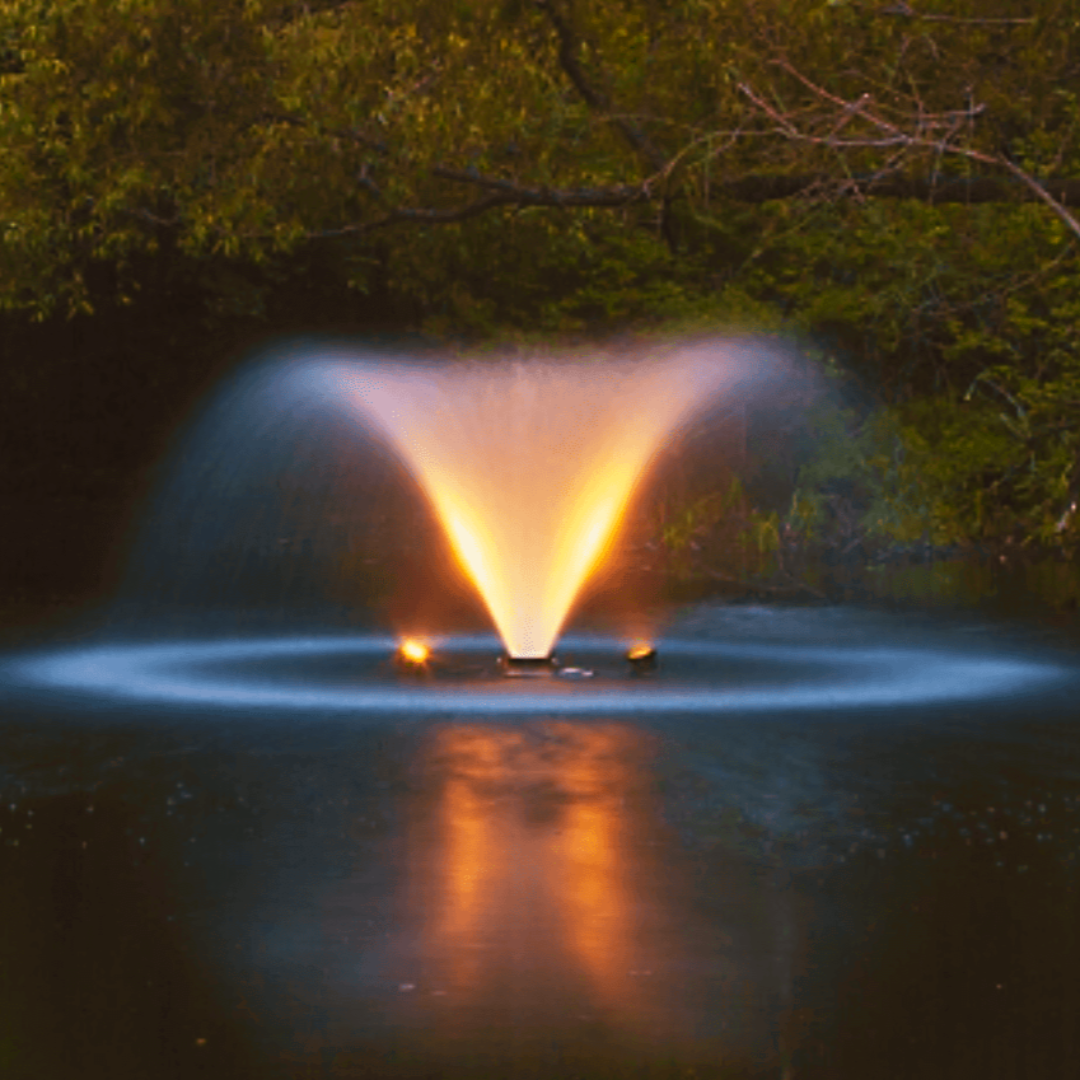

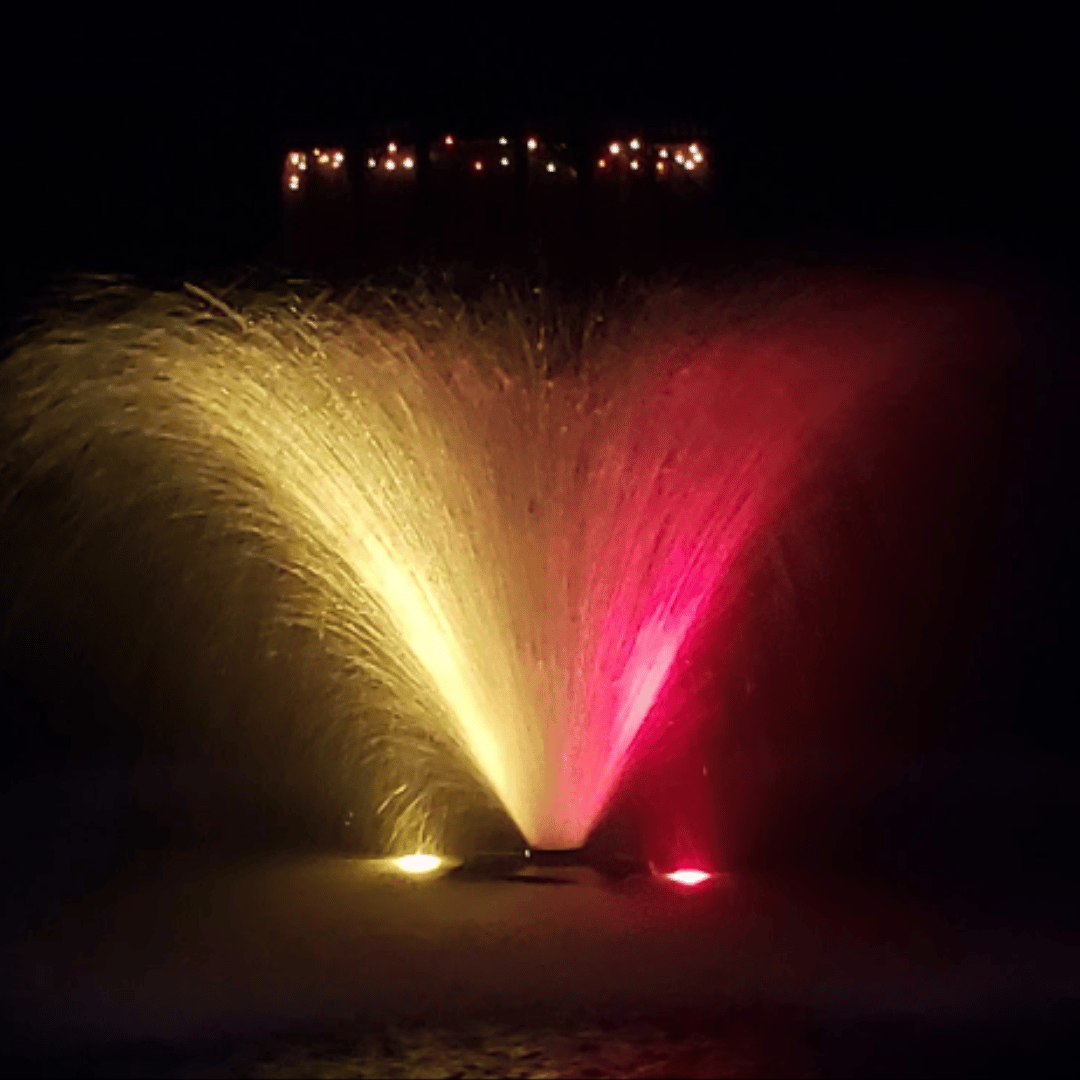

- Optional LED lighting and timers are available for purchase with your initial order or separately.
- Available in 7 different sizes to suit various pond dimensions.
- Features an oil-free, water-cooled motor for reliable performance.
- Suitable for saltwater environments.
- Comes with a 5-year warranty for peace of mind.
- A GFCI is required for safe operation. Always disconnect power when swimmers are present.
- Tested and certified by ARL to meet UL and National Electric Code standards as complete systems.
Size Specifications
| Motor Size | Spray Height & Width | Aeration Capacity | Minimum Water Depth | Flow Rate | Voltage |
|---|---|---|---|---|---|
| 1/3 HP | 5 ft High x 18 ft Wide | Up to 0.75 Acre | 32 Inches | 300 gallons/min | 115V or 230V |
| 1/2 HP | 6 ft High x 22 ft Wide | Up to 1 Acre | 34 Inches | 400 gallons/min | 115V or 230V |
| 3/4 HP | 6.8 ft High x 25 ft Wide | Up to 1.25 Acre | 36 Inches | 450 gallons/min | 115V or 230V |
| 1 HP | 7 ft High x 25 ft Wide | Up to 1.5 Acres | 36 Inches | 500 gallons/min | 115V or 230V |
| 1.5 HP | 10 ft High x 25 ft Wide | Up to 2 Acres | 38 Inches | 600 gallons/min | 230V only |
| 2 HP | 11 ft High x 26 ft Wide | Up to 2.5 Acres | 42 Inches | 700 gallons/min | 230V only |
| 3 HP | 11 ft High x 33 ft Wide | Up to 3 Acres | 60 Inches | 10,200 gal/hr | 230V only |
Warranty Details
| Component | Warranty Duration |
|---|---|
| Motor & Pump | 5 Years |
| Non-Electric Fountain Parts | 1 Year |
| Power Cable | 1 Year |
| Light Fixtures & Brackets | 2 Years |
| Light Transformer | 1 Year |
| Fountain Timers | 1 Year |
All standard Scott Aerator Company products come with a five-year warranty for the original owner, covering defects in motor materials or workmanship. Other parts have a one-year warranty from the purchase date. Scott Aerator Company will replace defective warranty parts upon return of the faulty unit to the factory, with the customer covering shipping costs. The unit must be returned before replacement parts are sent. Replaced parts will be shipped back with prepaid shipping. Neither Scott Aerator Company nor Pond Fountain Depot is responsible for any resulting damages or expenses related to field removal or repair attempts.
Electrical Specifications
Amp Draw & Power Consumption
| Motor Size | Amp Draw | Watts |
|---|---|---|
| 1/3 HP 115V | 8 | 670 |
| 1/3 HP 230V | 4 | 670 |
| 1/2 HP 115V | 10 | 670 |
| 1/2 HP 230V | 5 | 670 |
| 3/4 HP 115V | 11.5 | 875 |
| 3/4 HP 230V | 8.2 | 940 |
| 1 HP 115V | 11.5 | 1090 |
| 1 HP 230V | 8.2 | 1210 |
| 1.5 HP 230V | 10.6 | 1770 |
| 2 HP 230V | 12.6 | 2280 |
| 3 HP 230V | 14 | 3000 |
Cable Specifications & Maximum Distance from Fountain to Breaker
| Motor Size | #12 | #10 | #8 |
|---|---|---|---|
| 1/3 HP 115V | 170' | 270’ | 420’ |
| 1/3 HP 230V | 680' | 1080' | 1680' |
| 1/2 HP 115V | 160' | 250' | 390' |
| 1/2 HP 230V | 650' | 1020' | 1610' |
| 3/4 HP 115V | 125’ | 200’ | 300’ |
| 3/4 HP 230V | 480' | 760' | 1200' |
| 1 HP 115V | 100' | 150’ | 225' |
| 1 HP 230V | 400' | 630' | 990' |
| 1.5 HP 230V | 310' | 480' | 770' |
| 2 HP 230V | 250' | 390' | 620' |
| 3 HP 230V | 190' | 300' | 470' |
Documentation
Common Questions
Q: How do I select the right fountain?
A: Your choice depends on your goals: aeration, visual appeal, or both. For aeration or a combination, we recommend our Aerating Fountains due to their high flow rates. For aesthetics, consider the various display options, ensure your pond meets the minimum depth, and that the display size is appropriate for your pond.
Q: How do I determine the required horsepower?
A: Horsepower influences the size of the spray pattern. Make sure your pond meets the minimum depth for the chosen horsepower and that the spray won't reach the pond's edges. For ponds a quarter acre or larger, base your selection on desired appearance and budget.
Q: Is professional installation necessary for my fountain?
A: If there isn't a power source near the pond, consult a licensed electrician. Fountain installation is straightforward, and many customers install their own to save money. Fountains float in the pond, secured by two anchors, and connect to the power source via a submersible cord.
Q: How do I choose between 110-120V and 220-240V?
A: If your power source is more than 70 feet from the main breaker, choose 220-240V to ensure adequate power delivery. Verify that your power source can handle the higher voltage to prevent inconsistent performance.
Q: Are lights included with the fountain?

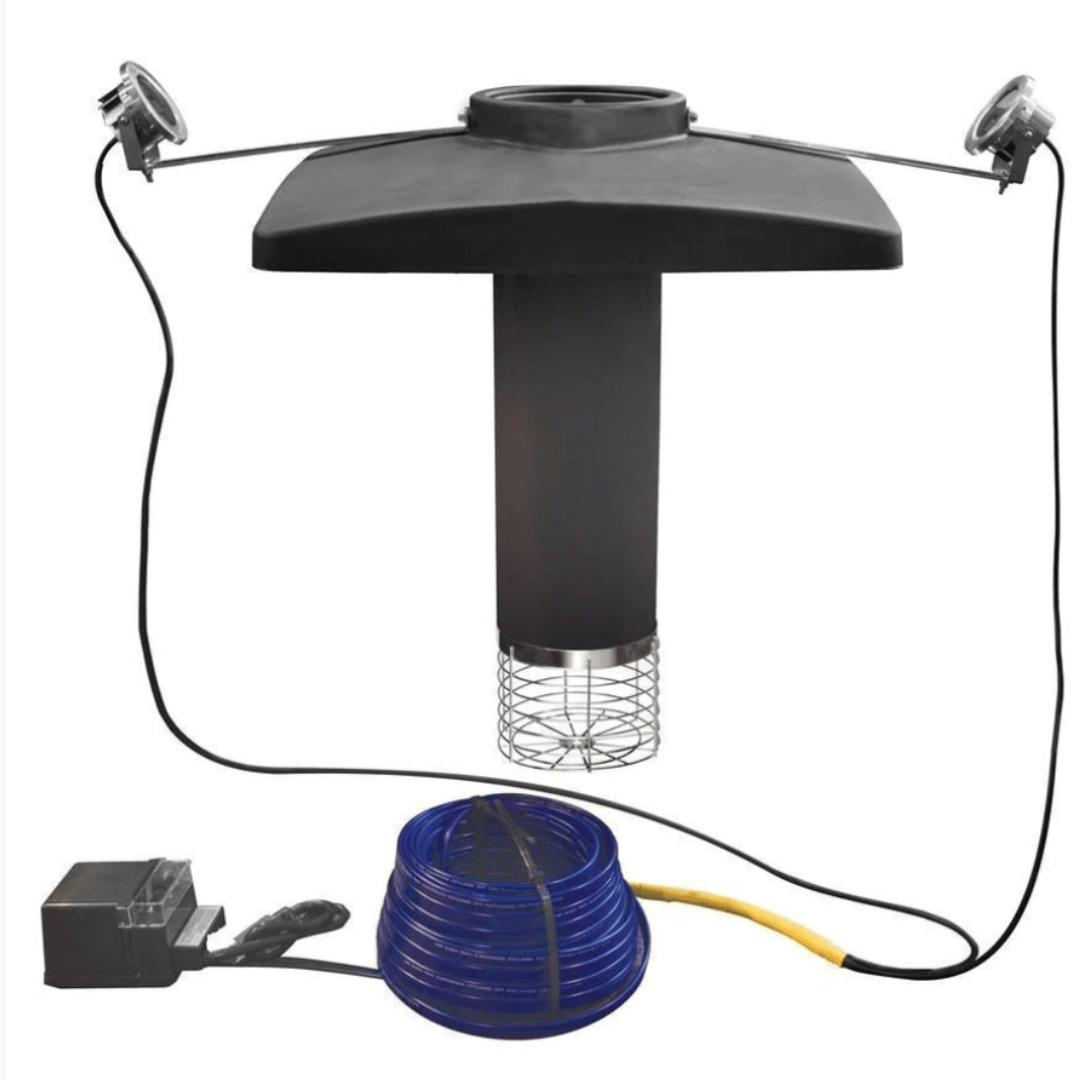

A: Lights are not standard but can be purchased with the fountain or later. They easily attach to the floating unit and are highly recommended for nighttime viewing.
Q: Why is the power cord expensive?
A: The cost reflects the materials used. Depending on the fountain, the power cord is constructed from 14-gauge to 4-gauge copper or stainless steel wire, ensuring durability and performance.
Q: Can I leave my fountain in the water during winter?
A: Scott Aerator Fountains can operate throughout the winter. They should either run continuously or be completely shut off during the winter months. Once the water thaws, simply restart them.
